Front Fender Liner: Service and Repair

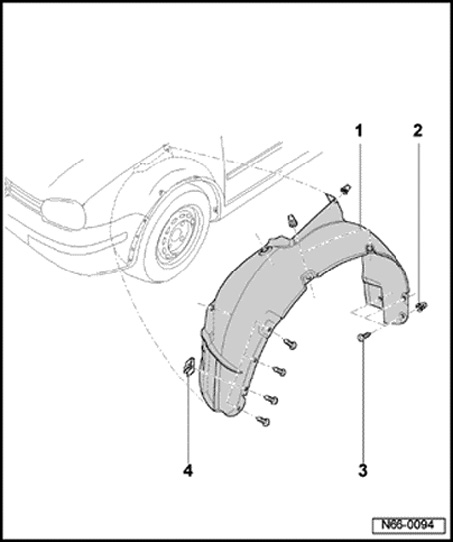

Front Wheelhousing Liner 1
-
Wheelhousing liner
-
Material - PP/EPDM
-
Removing
-
Remove wheel. Tightening torque of wheel bolts =
120 Nm.
-
Remove bolts (Qty. 12) and remove wheelhousing liner.
2
-
Expanding nut
3
-
Screw
4
-
Speed nut
-
Connected to
bumper cover
