Load Compensator: Service and Repair

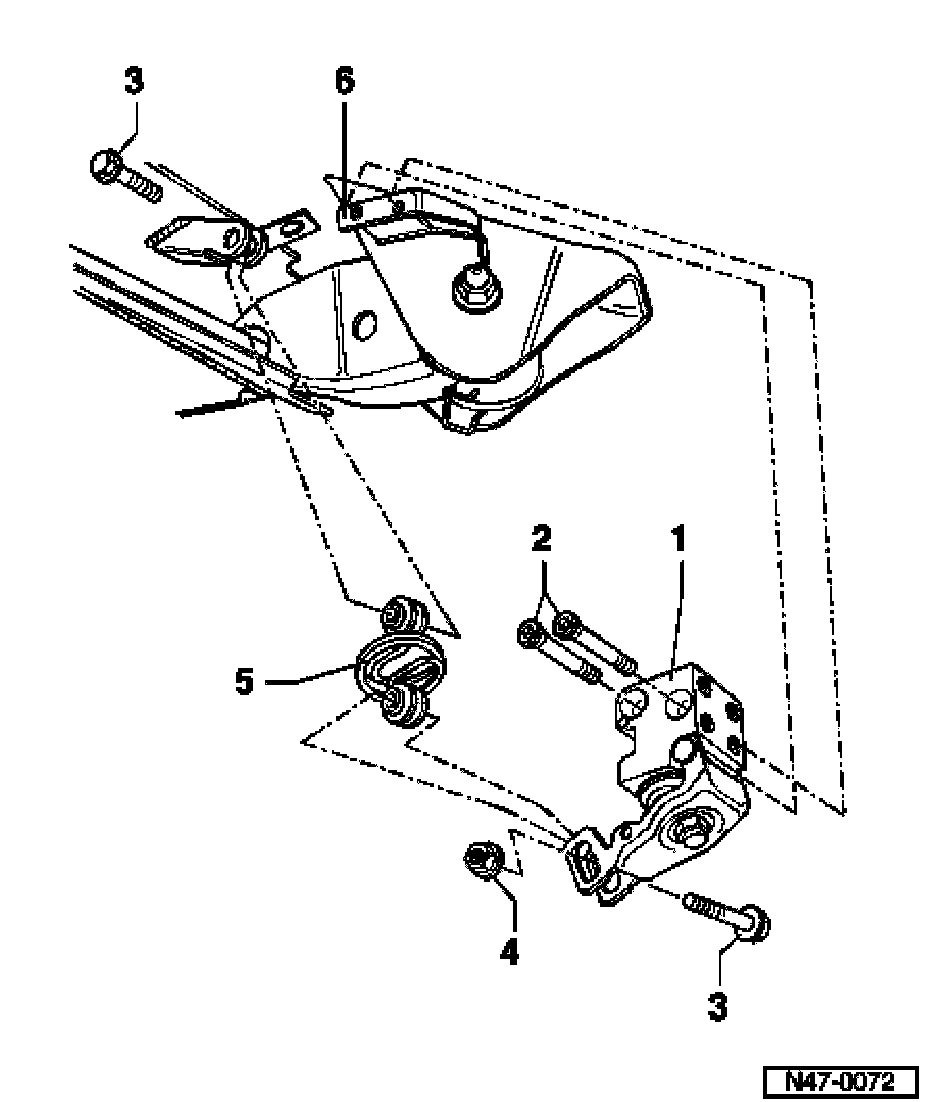

Brake pressure regulator, assembly overview

1. Brake pressure regulator
- Checking and adjusting
2. Hex socket head screw, 21 Nm (15 ft. lbs.)
3. Hex bolt, 16 Nm (12 ft. lbs.)
4. Nut, 21 Nm (15 ft. lbs.)
5. Spring
6. Mounting bracket
