503 - Threaded Connection -2-

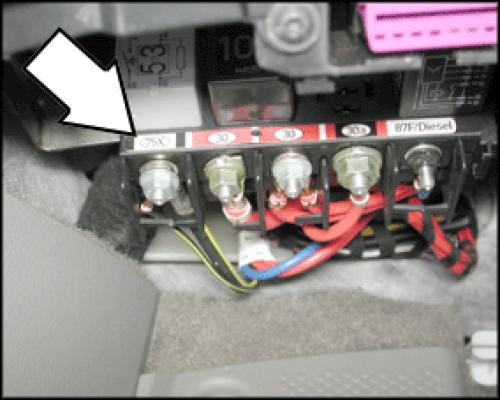

503 Threaded connection -2- (75x) (at relay panel)







- at relay panel

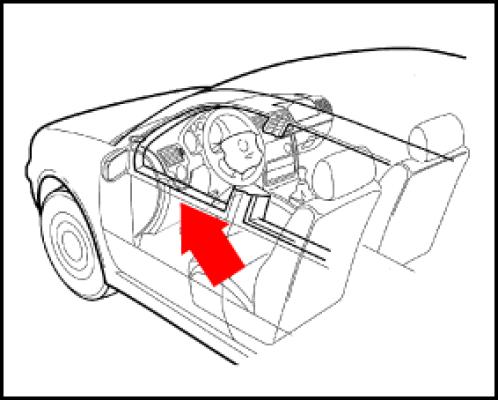

- above driver's footwell, to left of the pedal cluster
- integral with the relay cluster
