Transmission and Drivetrain: Service Precautions

5 Speed Automatic 09A

Safety precautions


WARNING!
- Always secure testing and measuring equipment on the rear seat.
- When the vehicle is being driven, only a passenger can operate this equipment.


Test conditions:
- Selector lever in position "P" and parking brake applied.
- Vehicle voltage supply in order.
- Fuses in main fuse box OK.

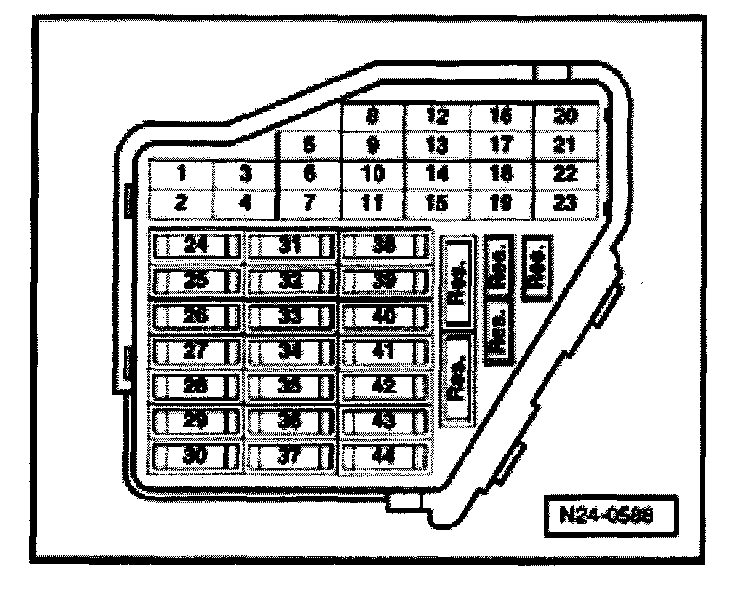

- Fuses 7, 11, 13, 15 and 31 OK.
- Check Ground connections for transmission:

- Check Ground connections for corrosion and poor contact; repair if necessary.
- Ground connection point is located in engine compartment, left, below battery.
- Check battery Ground strap and Ground strap between battery and transmission.
