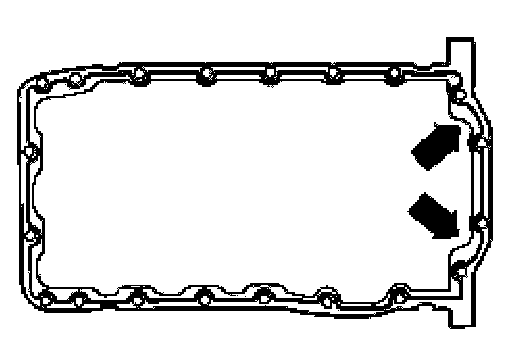

Oil Pan, Engine
Tighten all pan/cylinder block bolts lightly using diagonal sequence.
Tighten three pan/transmission bolts lightly.
Tighten all pan/cylinder block bolts lightly using diagonal sequence again.
Tighten pan/transmission bolts to
45 Nm
Tighten all pan/cylinder block bolts to
15 Nm using diagonal sequence.
