Refrigerant Pressure Sensor / Switch: Service and Repair

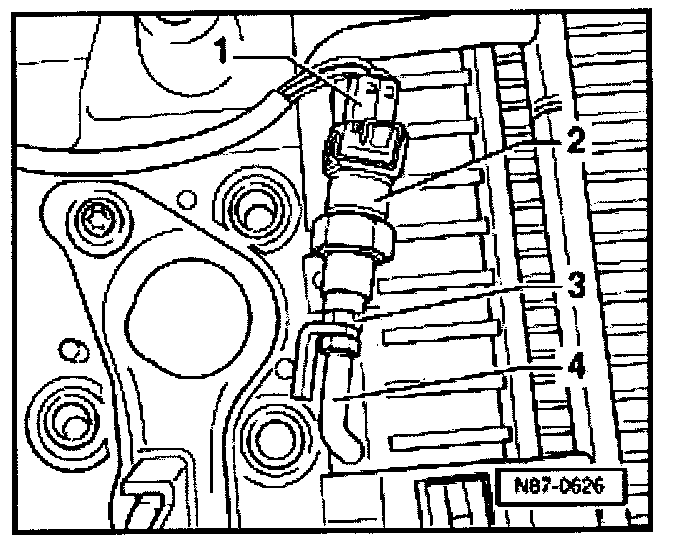

A/C Pressure Switch -F129- from 10.00, or high pressure sensor -G65, Replacing

1 - Connector
2 - A/C pressure switch -F129- (8 Nm)
3 - Hex (to counter-hold)
4 - Condensor connection
- Remove front bumper
- Remove front bumper carrier
- Separate electrical connection -1-

To prevent damage to condenser pipe connection -4- counter-hold hex fitting -3- with appropriate wrench when loosening switch.
- Remove A/C pressure switch -2-.
