Batteries For Main Key (Foldable) With Radio-Frequency Remote Control - Assembly Overview

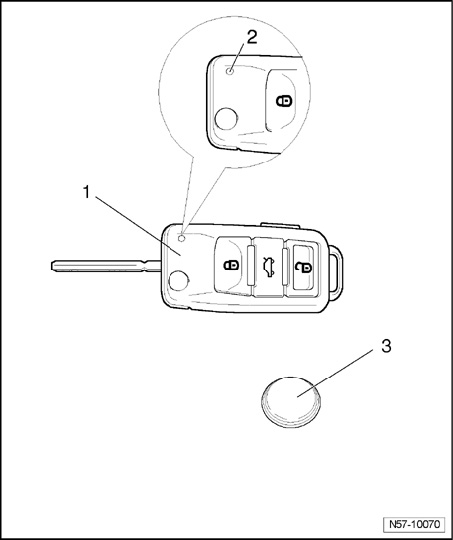

Batteries For Main Key (Foldable) With Radio-frequency Remote Control - Assembly Overview 11.00 -->







1 - Key with radio-frequency unit
- Adaptation via radio-frequency remote control.
- Radio-frequency unit cannot be replaced individually.

2 - LED
- This LED must blink when remote control is operated.
- If LED does not blink when remote control is operated, battery is completely discharged and must be replaced.

3 - Battery.
