Lock Carrier, Service Position Assembly Overview

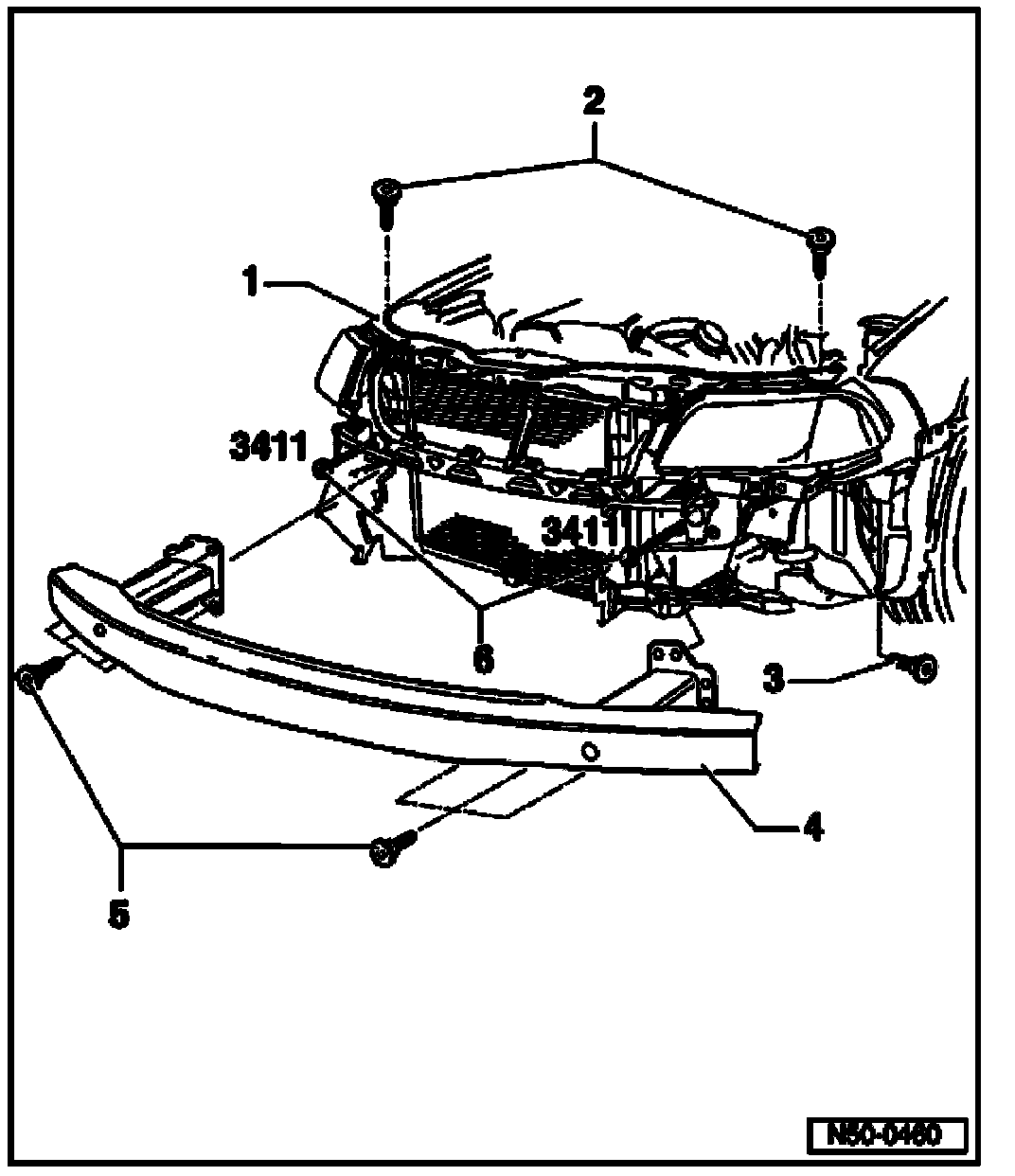

Lock carrier and front bumper reinforcement, service position, assembly overview from 10/00 1.
Lock carrier with attachments
2.
Bolt
Qty. 2
8 Nm 3.
Bolt
Qty. 3
6 Nm 4.
Bumper carrier
5.
Bolt
Qty 7
50 Nm 6.
Guide rods 3411
