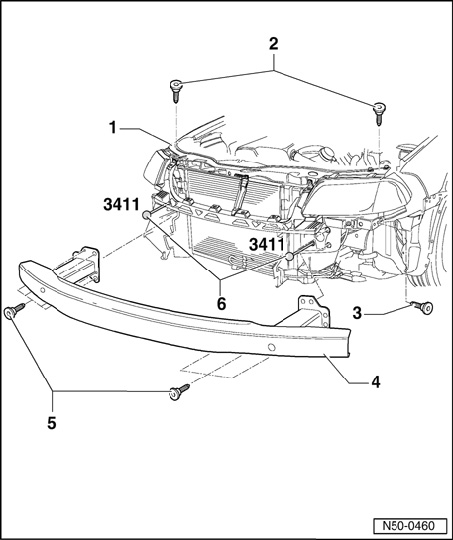

Lock Carrier And Front Bumper Reinforcement, Service Position, Assembly Overview
Lock Carrier And Front Bumper Reinforcement, Service Position, Assembly Overview 10.00 > 1.
Lock carrier with attachments
2.
Bolt
Qty 2
8 Nm 3.
Bolt
Qty.3
6 Nm 4.
Bumper carrier
5.
Bolt
Qty.7
50 Nm 6.
Guide rods 3411
