Engine Mount

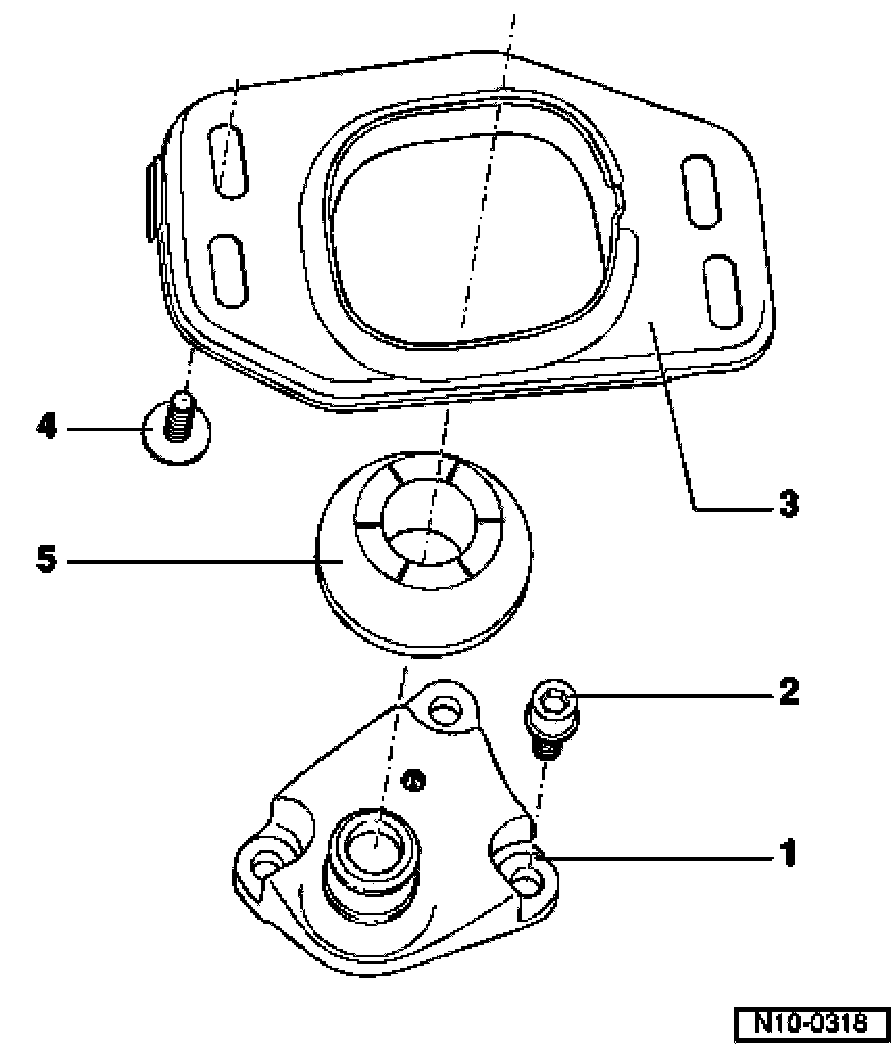

Front engine mounting
1. Torque bracket
2. 40 Nm
3. Stop
^ Allow to move onto stop buffer under its own weight and tighten securing bolt
4. 30 Nm
5. Bump stop
