Front Toe

Toe on front axle, adjusting
Adjustment of the toe angle is carried out without the adapters and with vehicle on hard standing
Specifications for vehicle alignment, Refer to Alignment Specifications

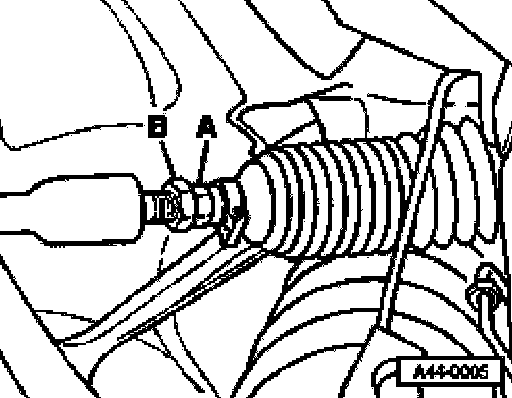

- Loosen lock nut -B-.





- Adjust toe on left and right-hand wheels at hex -A-.
- After turning tie rods, make sure that the boot is not twisted.
- Twisted boots wear out quickly.
- Tighten lock nut -B-, Refer to Steering Gear,Power Steering Gear, Disassembling and Assembling, See - item 2 or Power Steering Gear For Vehicles With 5, 6 or 8-Cylinder Engine, Disassembling and Assembling, See item 2 and check toe in again.
- After tightening lock nut -B- it is possible that the value deviates slightly.
- If the measured toe lies within the tolerance, the adjustment is correct.
