Air Flow Meter/Sensor: Service and Repair

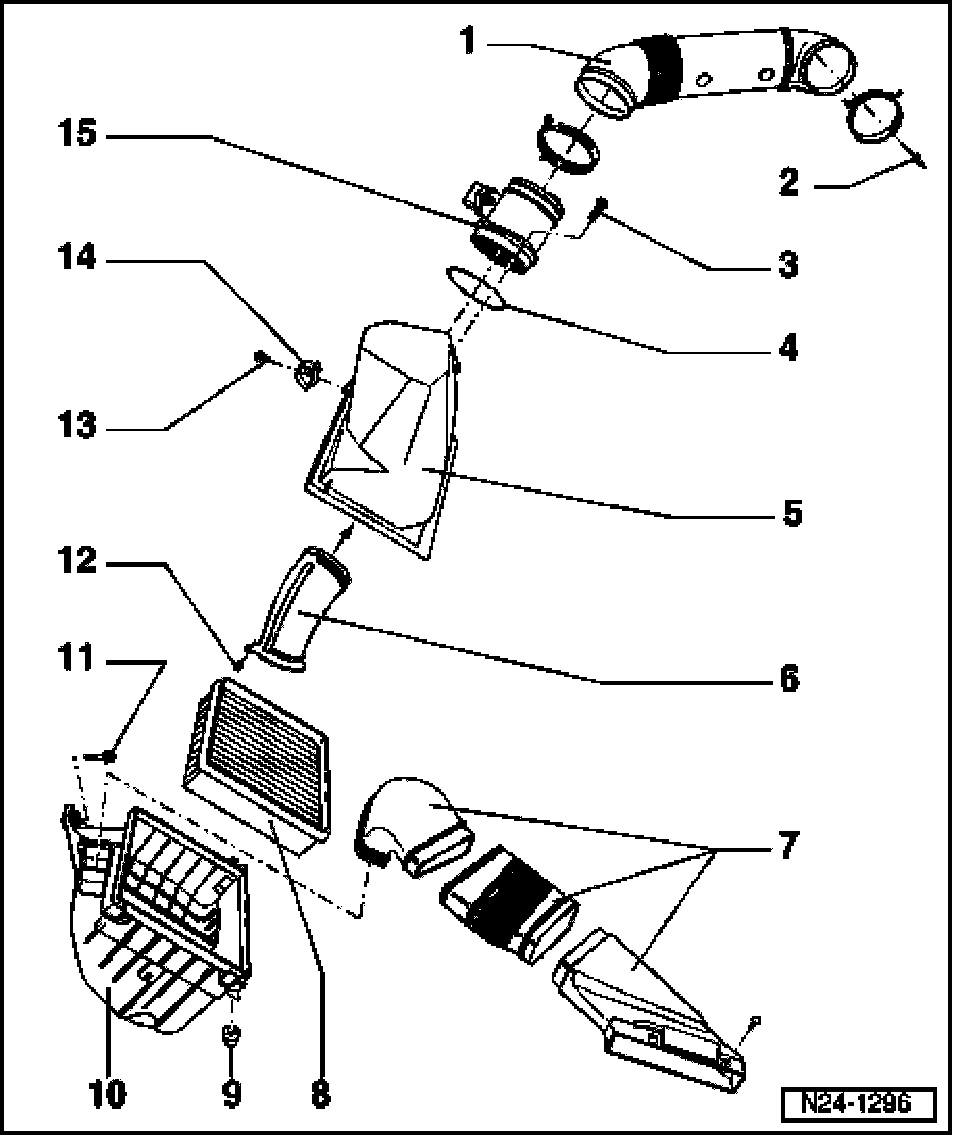

Air Filter, Disassembling And Assembling
1 Intake manifold
2 To Throttle valve control module -J338-
3 6 Nm
4 Oil seal
- Replace if damaged
5 Air filter upper part
6 Air duct
- Mounted into air filter upper part
7 Air ducts
- To lock carrier
8 Filter element
9 Rubber grommet
10 Air filter lower part
11 10 Nm
12 6 Nm
13 6 Nm
14 Bracket
15 Mass Air Flow (MAF) sensor -G70- with Intake Air Temperature (IAT) sensor-G42-
- 5-pin connector
