Throttle Position Sensor: Service and Repair

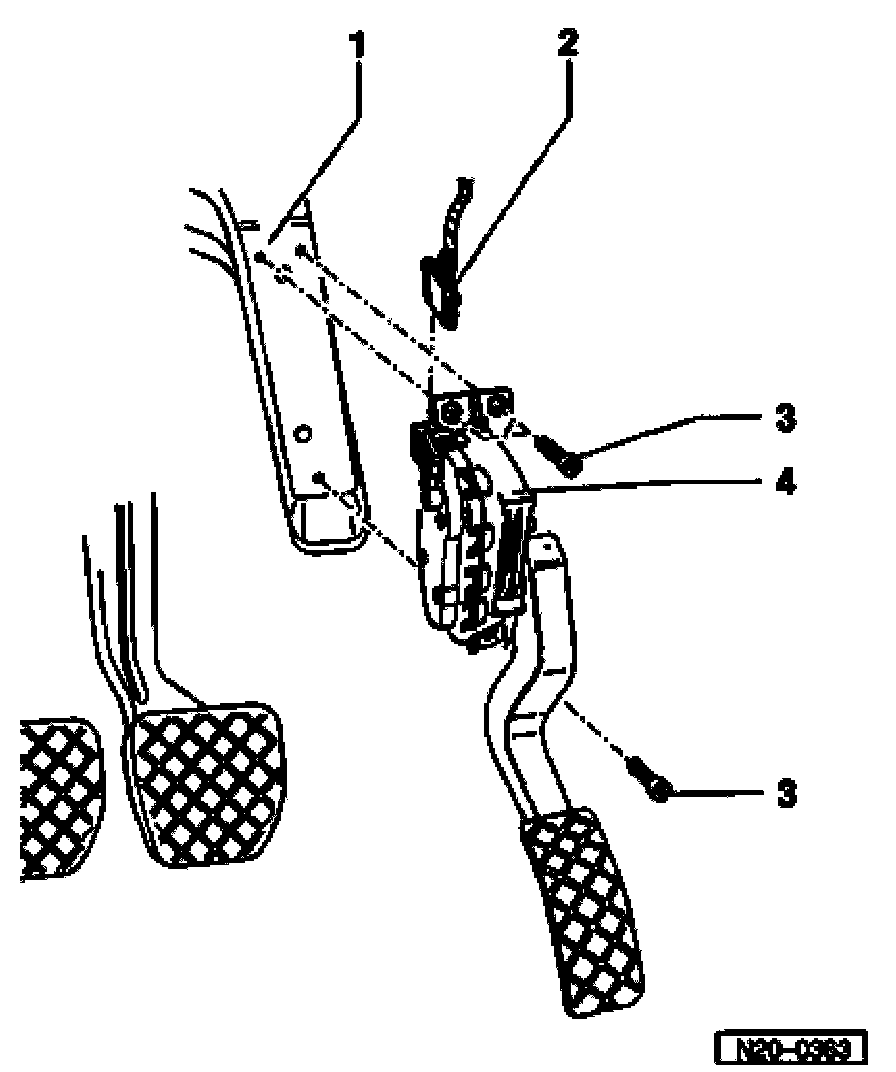

Throttle Position (TP) sensor G79- / Sender 2 for accelerator pedal position -G185-, removing and installing 1.
Bracket
2.
Connector
^
Black, 6-pin
3.
10 Nm 4.
Throttle Position
(TP) sensor -G79- and Sender 2 for accelerator pedal position - G185
^
Not adjustable
^
Remove footwell cover to remove
