Ignition System: Locations

Knock Sensors

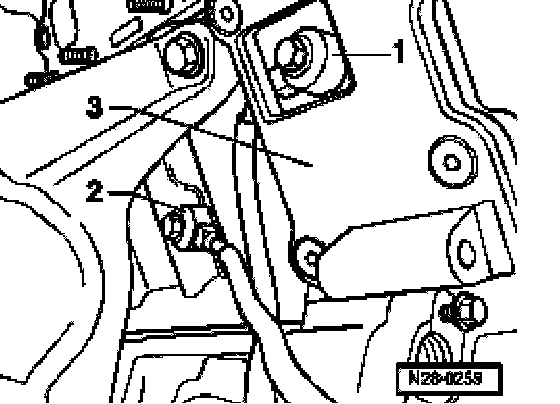

Fig. 1 Knock Sensor (KS) 1 -G61- (black) -1- for bank 1, cylinders 1 - 2 and Knock Sensor (KS) 2 -G66- (brown) -2- for bank 1, cylinders 3 - 4

Note: Alternator mount -3- (alternator removed).

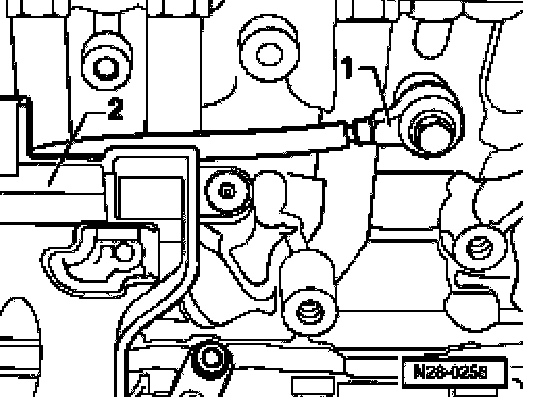

Fig. 2 Knock sensor 3 -G198- (orange) -1- for bank 2, cylinders 5 - 6

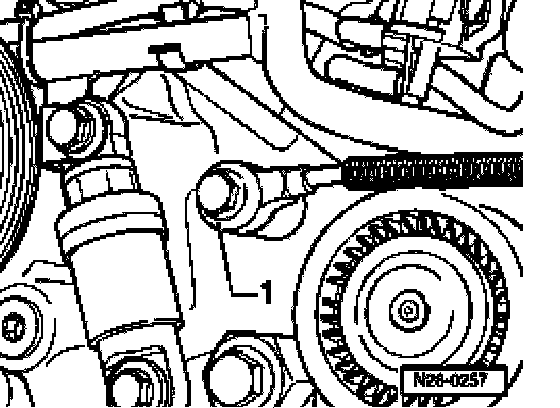

Fig. 3 Knock sensor 4 -G199- (gray) -1- for bank 2, cylinders 7 - 8

Note: Air conditioner compressor mount -2- (compressor removed).
