Accelerator Pedal Position Sensor: Service and Repair

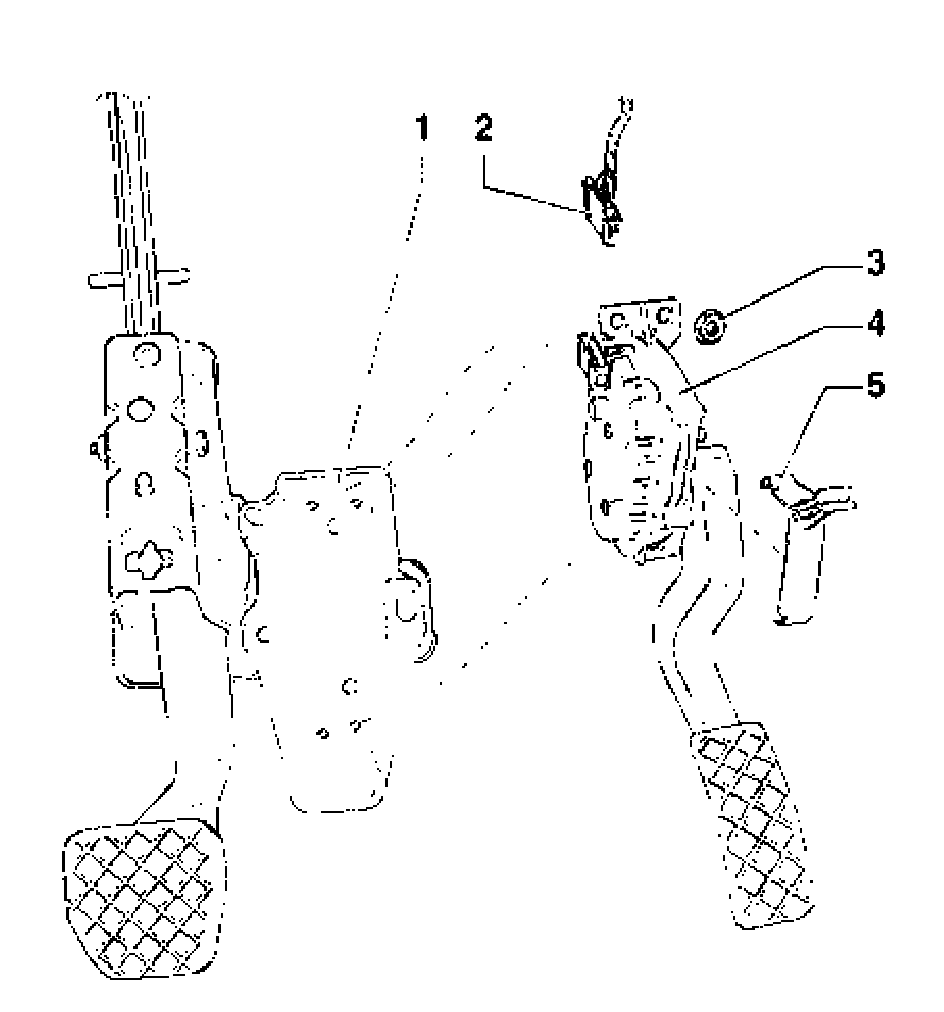

Accelerator mechanism, servicing 1.
Mounting bracket
2.
Connector
^
Black, 6-pin
3.
10 Nm 4.
Throttle Position
(TP) sensor G79-
^
Cannot be adjusted
^
TP sensor passes position of pedal on to engine control module
^
Remove footwell cover to remove sensor
5.
Bracket
^
For footwell cover
^
Clipped firmly onto
throttle position sensor.
