Exhaust Gas Recirculation: Service and Repair

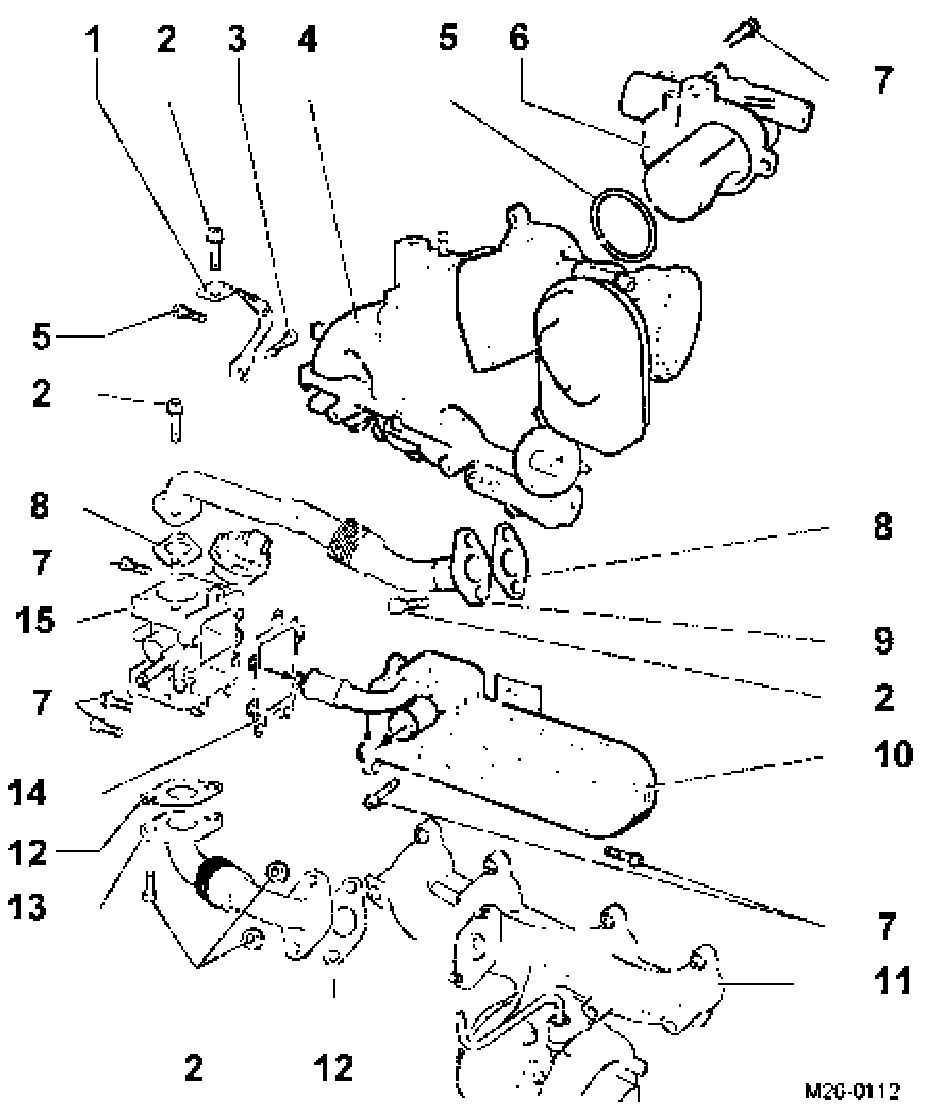

Exhaust gas recirculation system components, assembly overview 1.
Bracket
^
For bypass flap
2.
22 Nm 3.
5 Nm 4.
Intake manifold
5.
O-ring
6.
EGR vacuum regulator valve N121-
7.
10 Nm 8.
Seal
9.
Connecting pipe
10.
Cooler
11.
Exhaust manifold
12.
Seal
13.
Connecting pipe
14.
Seal
15.
Bypass flap
