Toe

Toe on rear axle (vehicles with front wheel drive), adjusting
If a value lies outside the tolerances, check trim height and balance if necessary.

Total toe for the rear axle is not adjustable.

Only by sliding the mounting brackets is it possible to balance the individual toe values.

If the measured values are outside the allowed tolerances, the axle beam must be checked for damage and replaced if necessary.

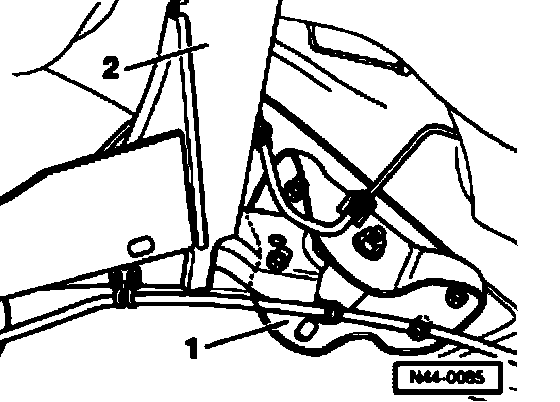

- Loosen all bolts on bearing brackets -1 -
- Slide bearing bracket -1 - laterally. 2 - Rear axle beam - Tighten bolts to 75 Nm (55 ft. lbs.).
- Always use new bolts!
