Leak Detection Pump: Service and Repair

Intake Manifold, Upper Part, Disassembling And Assembling

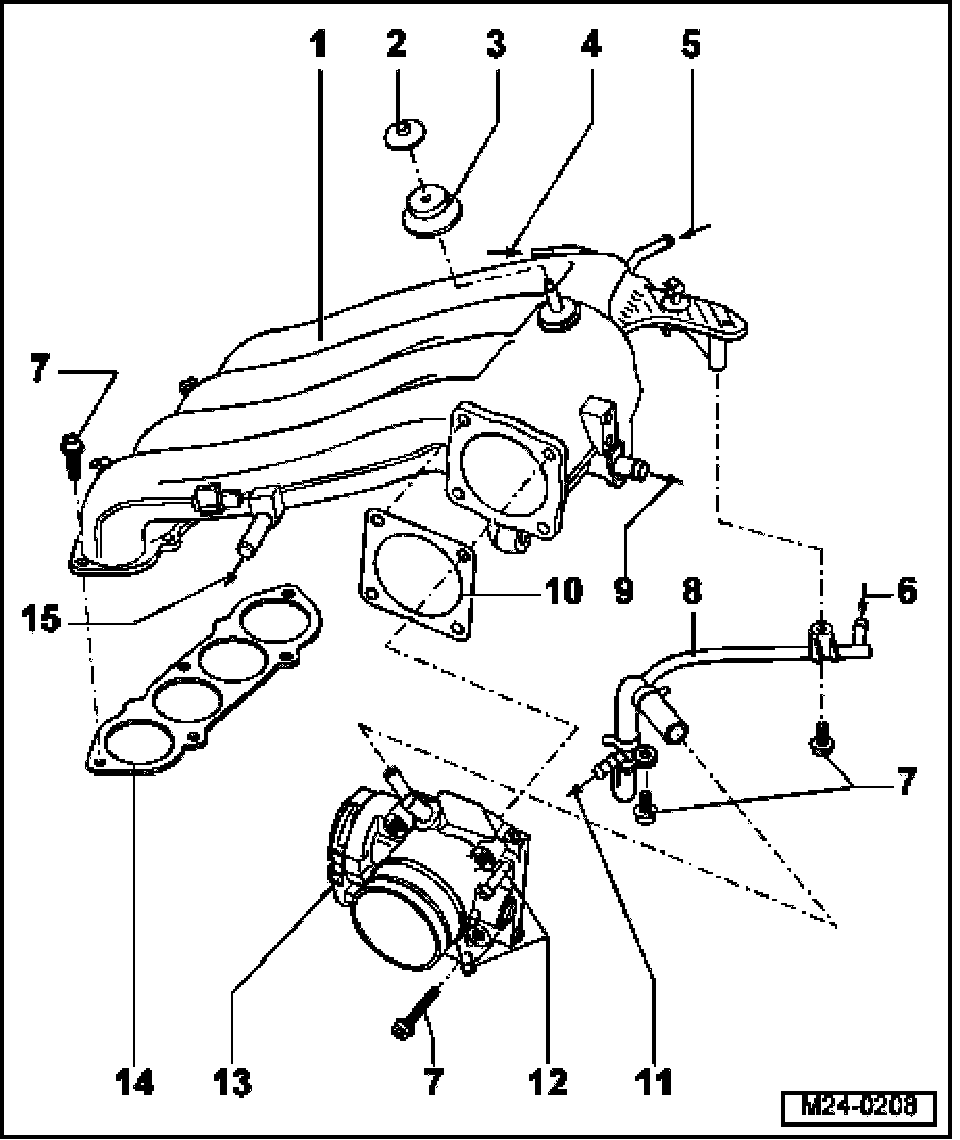

Intake Manifold Upper Part:

1 Upper part of intake manifold
2 6 Nm
3 Rubber bushing
- For engine cover
4 From fuel pressure regulator
5 From the Leak Detection Pump (LDP) -V144-
6 From Evaporative Emission (EVAP) canister purge regulator valve -N80-
7 10 Nm
8 Connection tube
9 To vacuum line, brake booster
10 Seal
11 To intake hose
12 Connections for coolant hoses
13 Throttle valve control module-J338-*
- Terminals of sensor and connector are gold-plated
14 Seal
15 Connecting piece
- as of model year 2002 for vehicles with engine code AVH, AZG
