Engine Mount

Assembly mounting
Tightening torques

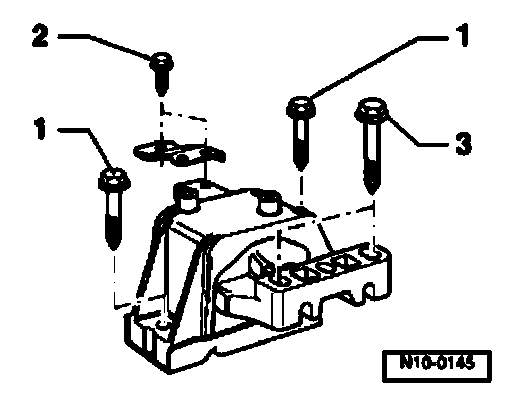

Engine mounting
1. Bracket to body 1) 40 Nm plus 90° (1/4 turn)
2. Mounting/bracket to body 25 Nm
3. Mounting to body 100 Nm
1) Replace bolts

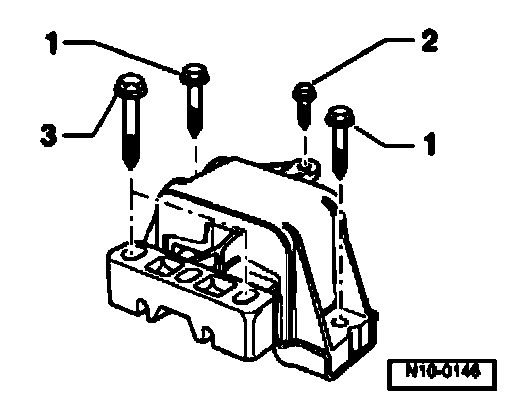

Transmission mounting
1. Mounting to body 1) 40 Nm plus 90° (1/4 turn)
2. Mounting to body 25 Nm
3. Mounting to transmission bracket 100 Nm
1) Replace bolts

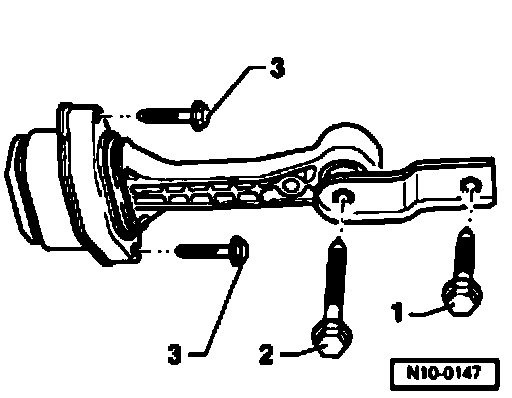

Pendulum support
1. Pendulum support to transmission 40 Nm plus 90°(1/4 turn)
2. Pendulum support to transmission 40 Nm plus 90°(1/4 turn)
3. Pendulum support to subframe 20 Nm plus 90°(1/4 turn)
