Electronic Power Control (EPC) Components, Servicing

Electronic Power Control (EPC) Components, Servicing







NOTE: Components marked with * are tested via On Board Diagnostic (OBD), Diagnostic mode 3: Check DTC memory.

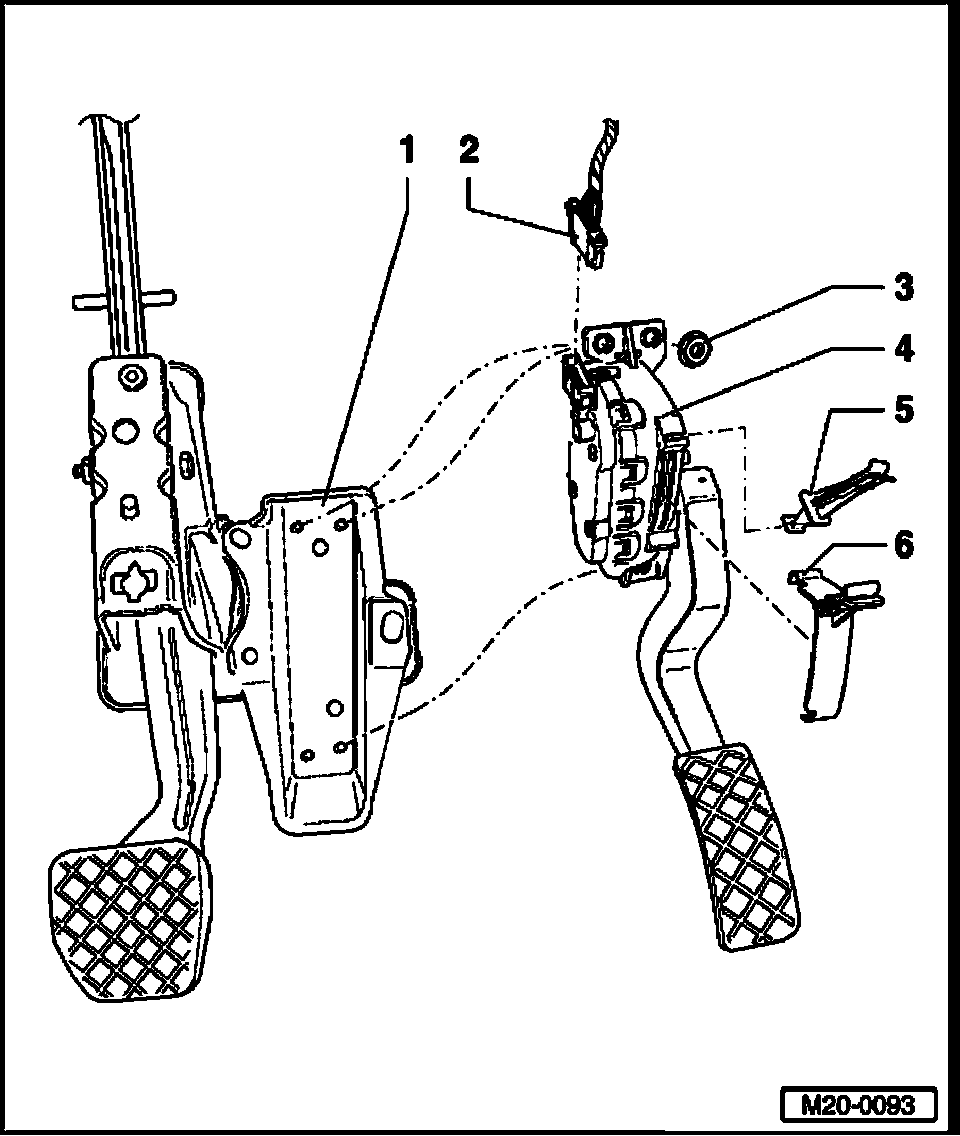

1. Mounting bracket
2. Connector
- Black, 6-pi
- Terminals are gold-plated
3. 10 Nm
4. Throttle Position (TP) sensor -G79- and Sender 2 for accelerator pedal position -G185-*
- Not adjustable
- Throttle Position (TP) sensor communicates the driver's intentions to the Engine Control Module (ECM)
- To remove sensor, remove cover in footwell
5. Bracket
- For footwell cover
- Clipped in at Throttle Position (TP) sensor
- From model year 2002
6. Bracket
- For footwell cover
- Clipped in at Throttle Position (TP) sensor
- Up to model year 2001
