Transmission Position Sensor/Switch: Service and Repair



Multi-Function Transmission Range (TR) Switch, Replacing

Recommended special tools and equipment







- V.A.G 1331 Torque wrench (5 to 50 Nm)

Requirements
- Selector lever must be in -P- position.
- Parking brake must be engaged.
- Ignition switched off.

Removing

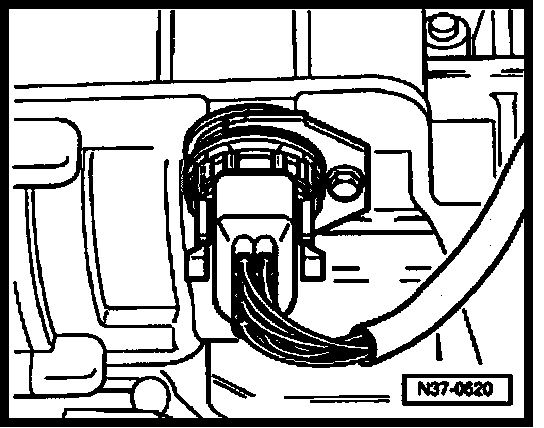

NOTE: Multi-function switch is located at rear on transmission.







- Disconnect connector from multi-function switch.
- Remove mounting bolt and retainer.
- Remove Multi-Function Transmission Range (TR) switch.
- Replace O-ring.

Installing
Installation is performed in reverse order of removal.
- Tighten bolt to 10 Nm.
- Erase DTC memory of Transmission Control Module (TCM), Diagnostic mode 4: Reset/erase diagnostic data.
- Generate readiness code.
