Oil Filter: Service and Repair

6-cyl Gasoline engine

Removing

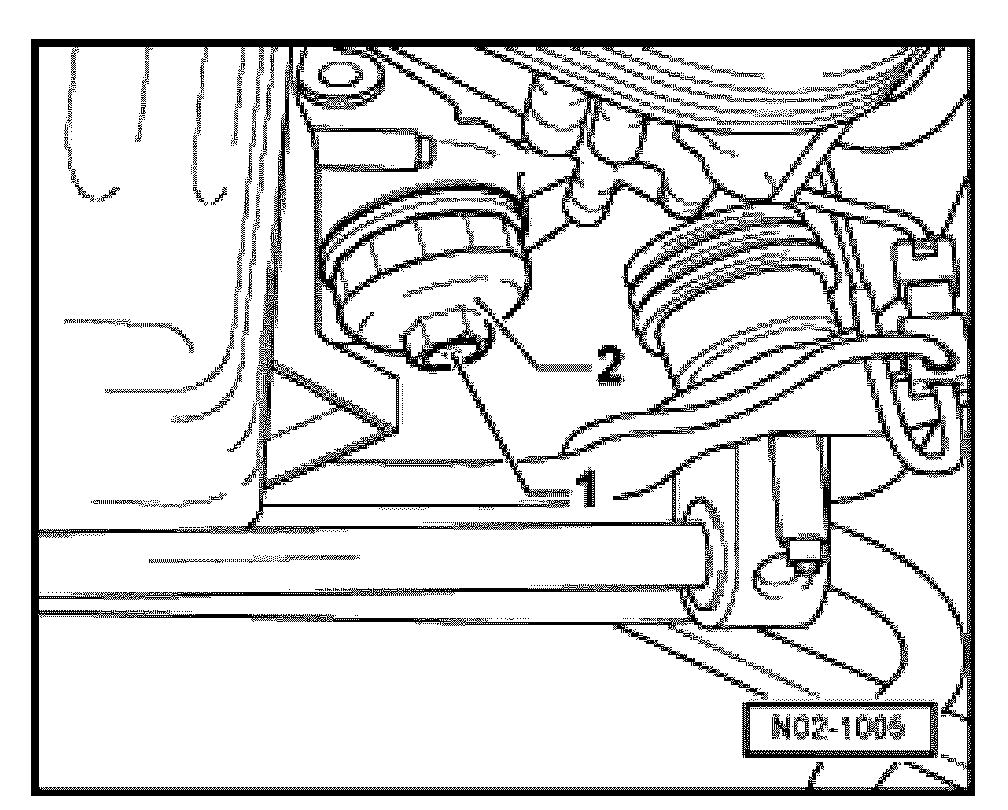

- Unscrew oil drain plug -1- of screw cap and drain oil.
- Loosen filter lower part -2- on hexagon -1- or on circumference and remove.
- Clean sealing surfaces at cap and at oil filter housing.

Installing

- Replace the filter element -4- and the seal -3-.
- Install cap -2- with new O-ring and tighten to 25 Nm
- Install oil drain plug -1- with new seal and tighten to 10 Nm.
