Ignition Coil Pack: Service and Repair


Ignition Coils with Power Output Stages

Special tools and workshop equipment required

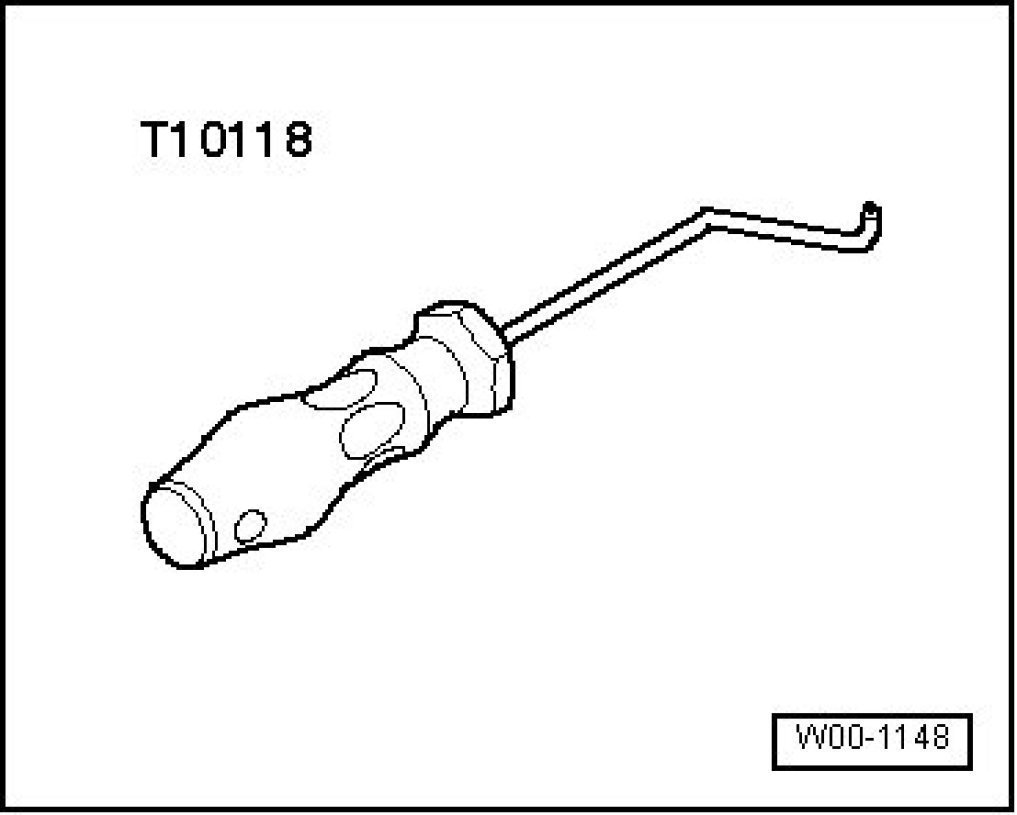

• Assembly Tool -T10118-

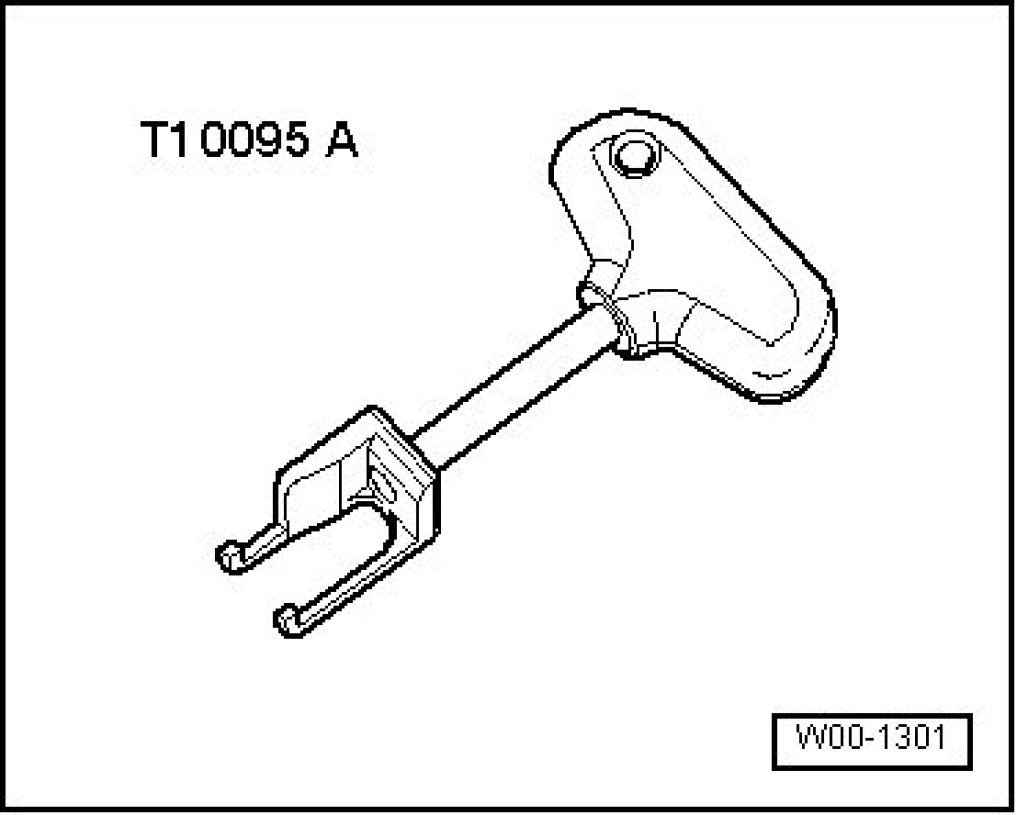

• Puller for Ignition Coil -T10095 A-

Removing

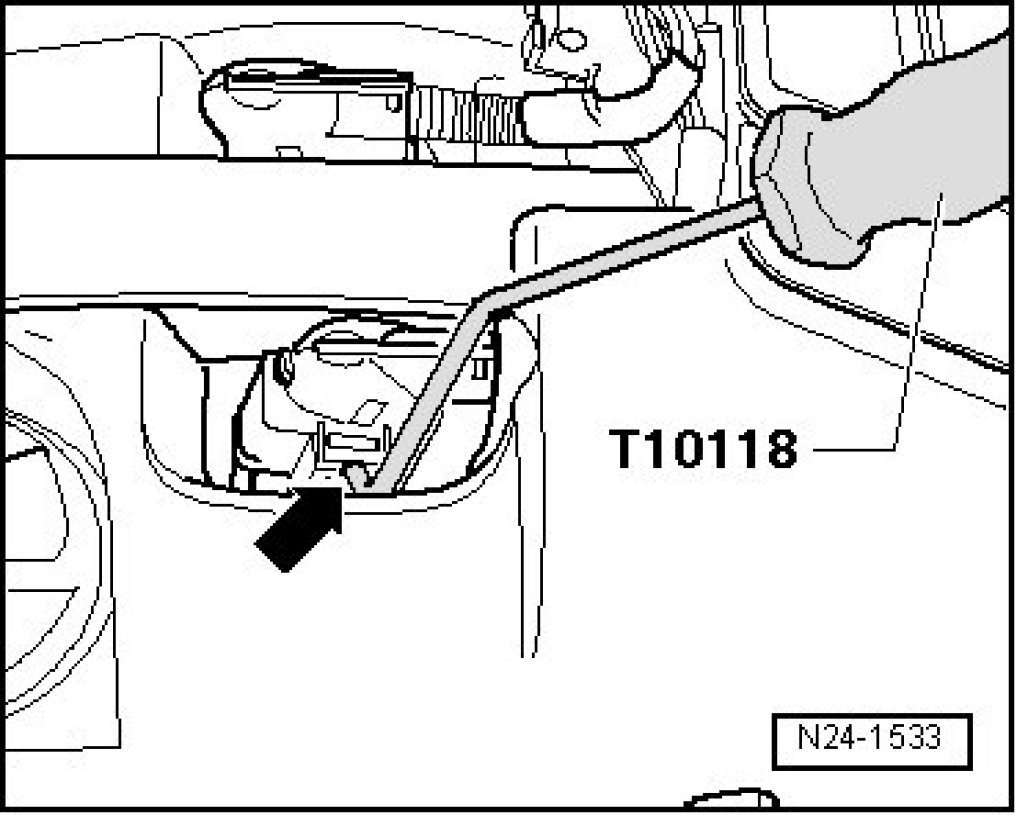

- Place the assembly tool -T10118- against the release button -arrow-, and carefully remove the connector from the respective ignition coil with power output stage.

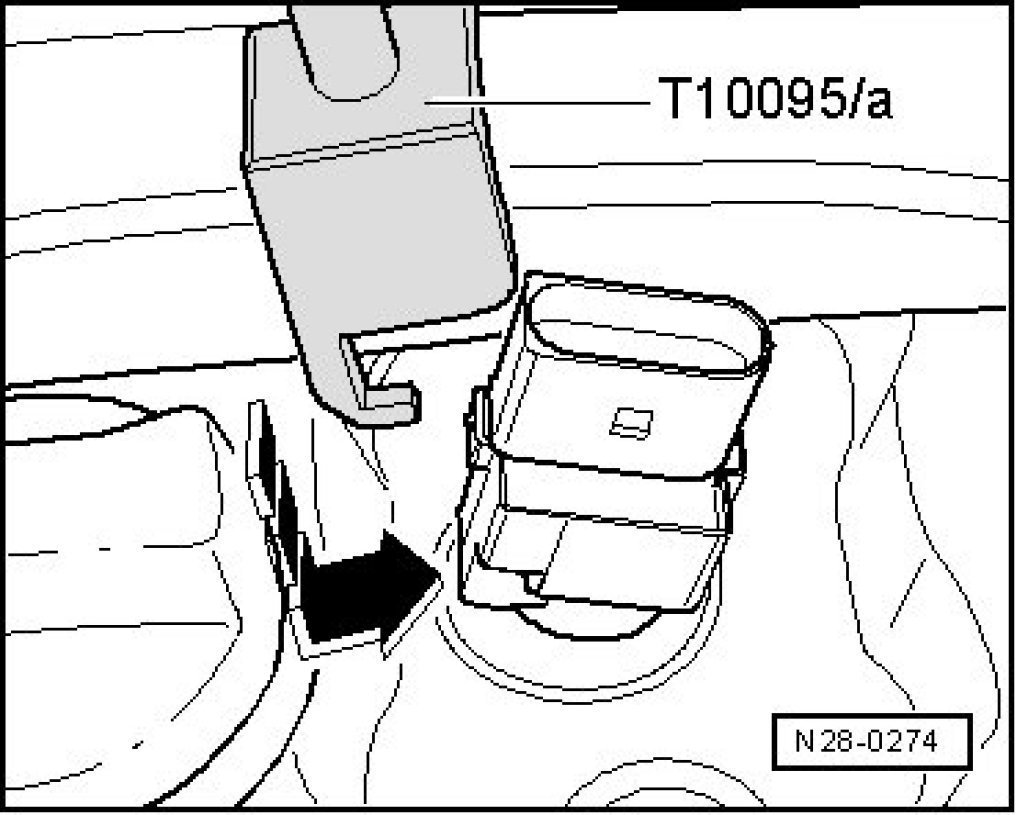

- From the straight side of the connector, push the puller for ignition coil -T10095 A- on in the -direction of the arrow-, and pull out the ignition coil with power output stage.

Installing

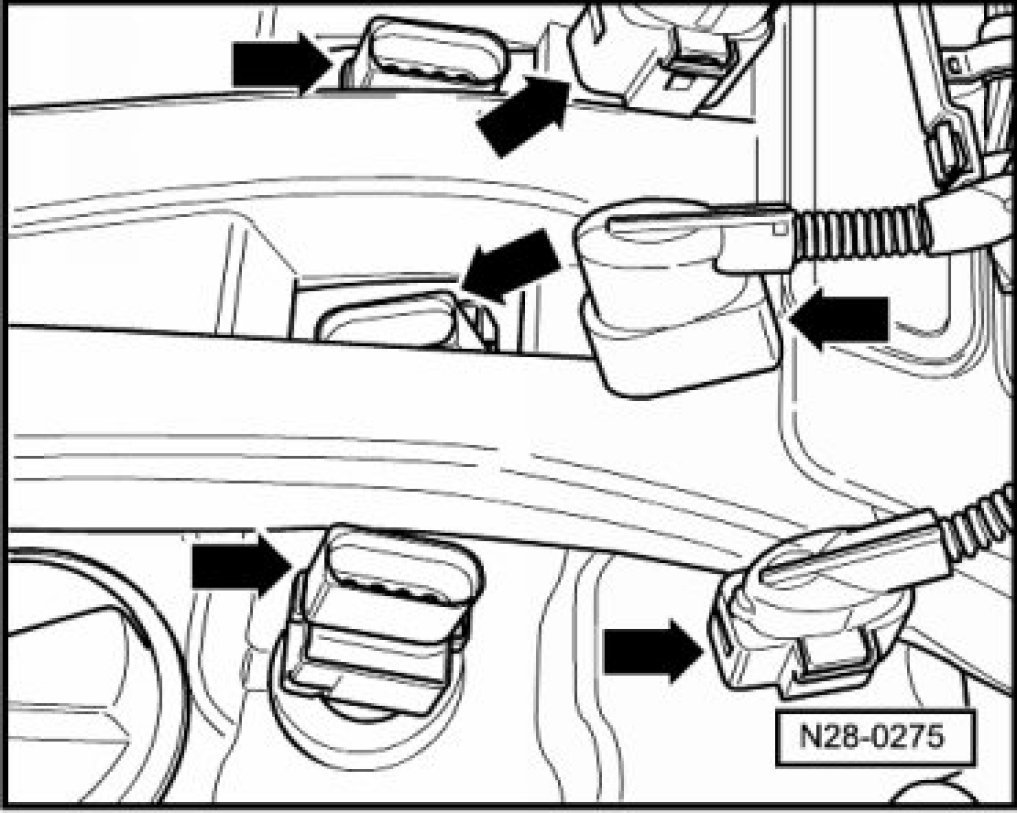

- To install, insert the ignition coil with power output stage into the corresponding spark plug shaft so that the straight connection sides align with each other -arrows-.





- Slide on the puller for ignition coil -T10095 A- from the straight connector side in the -direction of the arrow- and press the ignition coil with power output stage onto the spark plugs.

Special Tools

Special tools and workshop equipment required





• Assembly Tool -T10118-





• Puller for Ignition Coil -T10095 A-
