Evaluating Measuring Value Blocks

Read measuring value blocks, evaluating

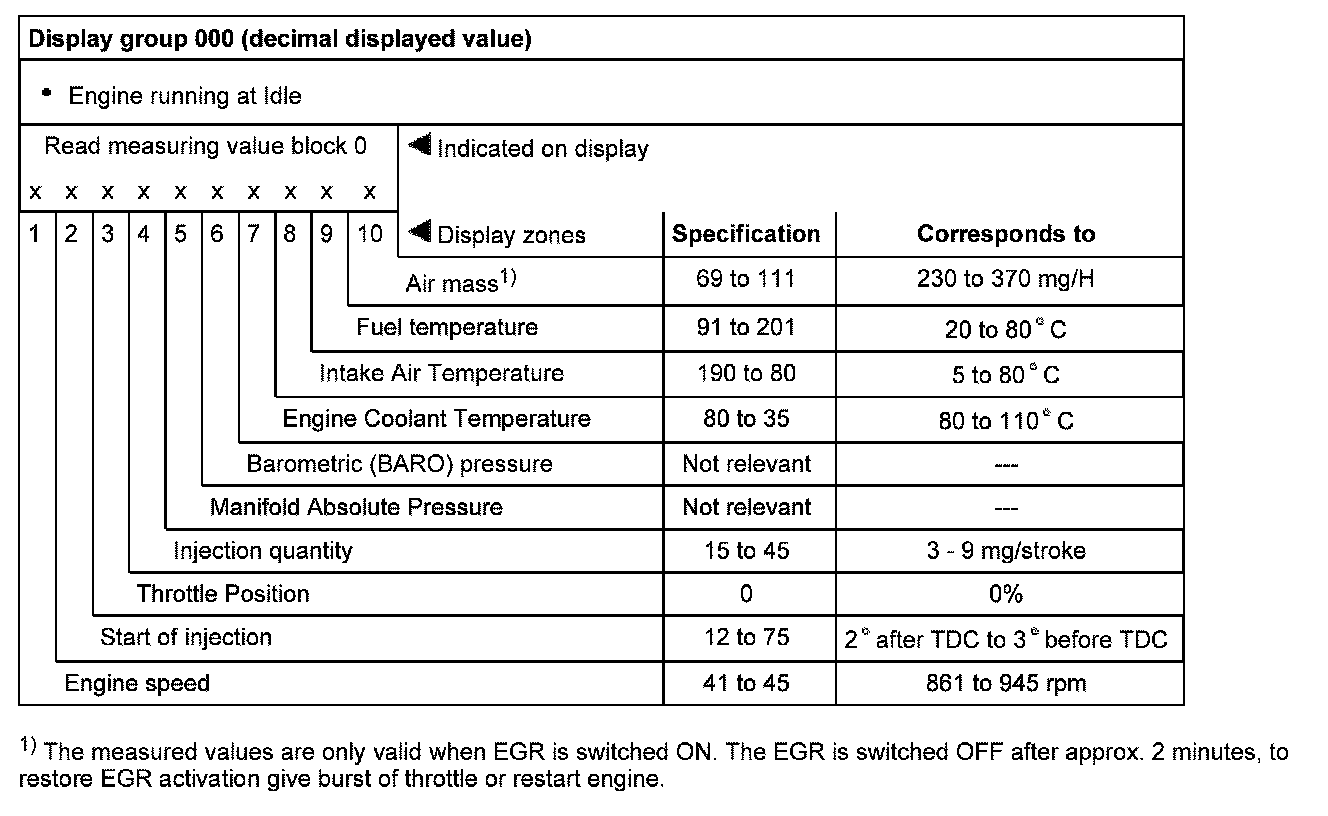

Display group 000 at Idle (engine warm, Engine Coolant Temperature 80° C minimum)

Display group 001 at Idle (engine warm, Engine Coolant Temperature 80° C minimum)

Display group 002 at Idle (engine warm, Engine Coolant Temperature 80° C minimum)

Display group 003 at Idle (engine warm, Engine Coolant Temperature 80° C minimum)

Display group 004 at Idle (engine warm, Engine Coolant Temperature 80° C minimum)

Display group 005

NOTE: The displayed values are irrelevant for workshop troubleshooting.

Display group 006 with ignition switched ON

Display group 007 with ignition switched ON (engine cold, not running)

Display group 009

NOTE: Displayed values are not relevant for workshop troubleshooting.

Display group 012

Display group 013 at Idle (engine warm, Engine Coolant Temperature 80 C minimum)
