Air Flow Meter/Sensor: Service and Repair

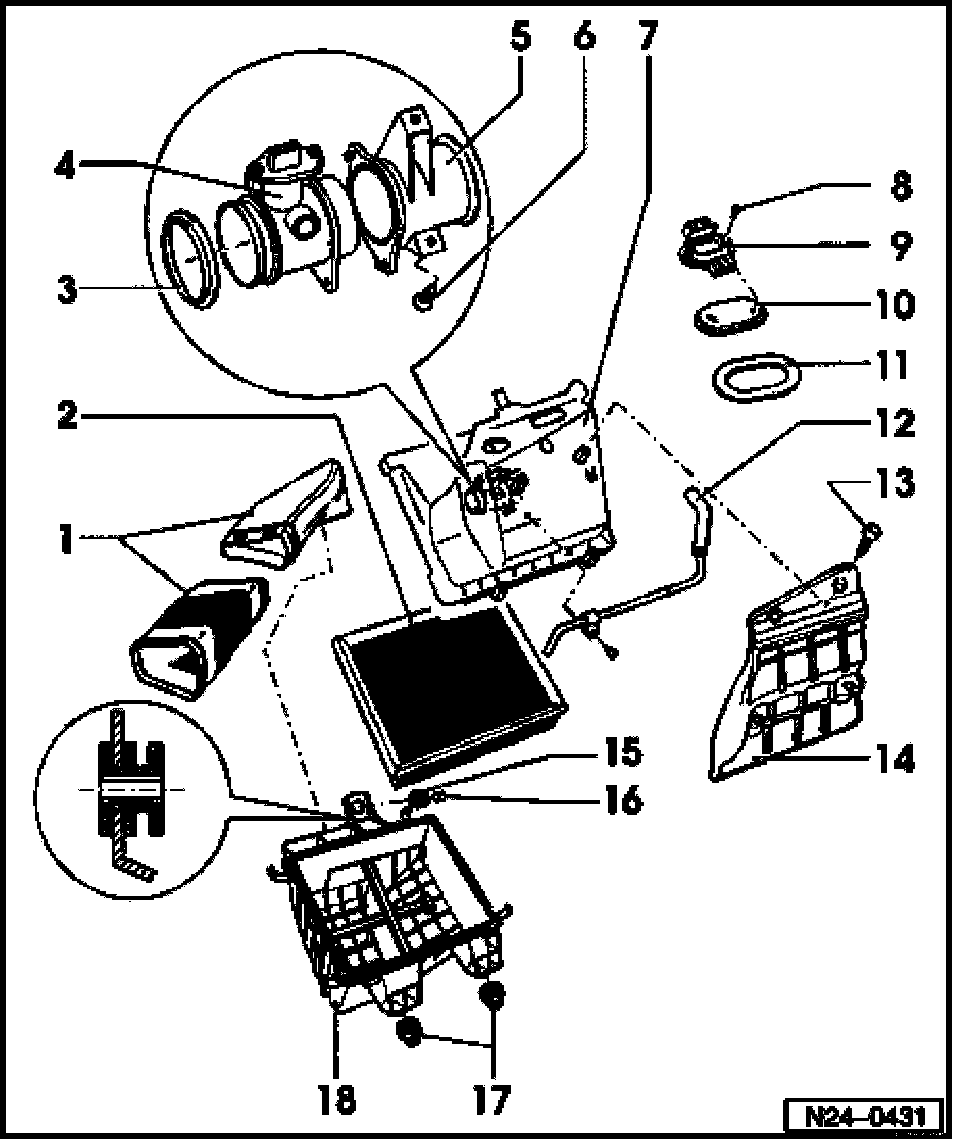

Air filter, disassembling and assembling







1 Air ducts
- to lock carrier
2 Filter element
3 Seal
4 Mass Air Flow (MAF) Sensor -G70-*
5 Air duct
6 6 Nm
7 Air filter, upper portion
8 6 Nm
9 Power Output Stage -N122-
- not for vehicles with engine code ATW, AUG, AWM
10 Cooling body
- not for vehicles with engine code ATW, AUG, AWM
11 Rubber ring
- not for vehicles with engine code ATW, AUG, AWM
12 Wire
- For EVAP canister system
13 10 Nm
14 Heat shield
15 Rubber grommet
16 Spacer sleeve
17 Rubber buffer
18 Air filter, lower portion.
