Fuel Level Sensor G, Removing and Installing

Fuel Level Sensor G, Removing And Installing

(AWD Models)

Removing
- Remove fuel delivery unit.

- Unclip Fuel Level Sensor G at baffle housing in fuel tank and remove.

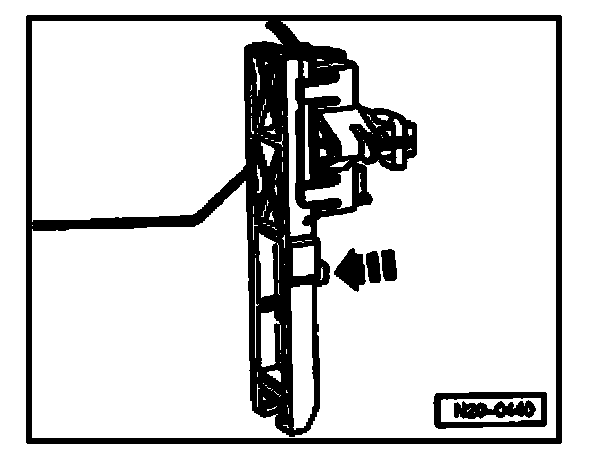

- Press locking mechanism at sender in direction of - arrow - and pull upward (figure shows sender removed).

Installing
- Insert Fuel Level Sensor G in guide on baffle housing and press down until it engages.
- Install Fuel Pump (FP).
