Variable Valve Timing Actuator: Service and Repair
Camshaft Adjustment (vehicles With Engine Code AUG, AWM), Servicing

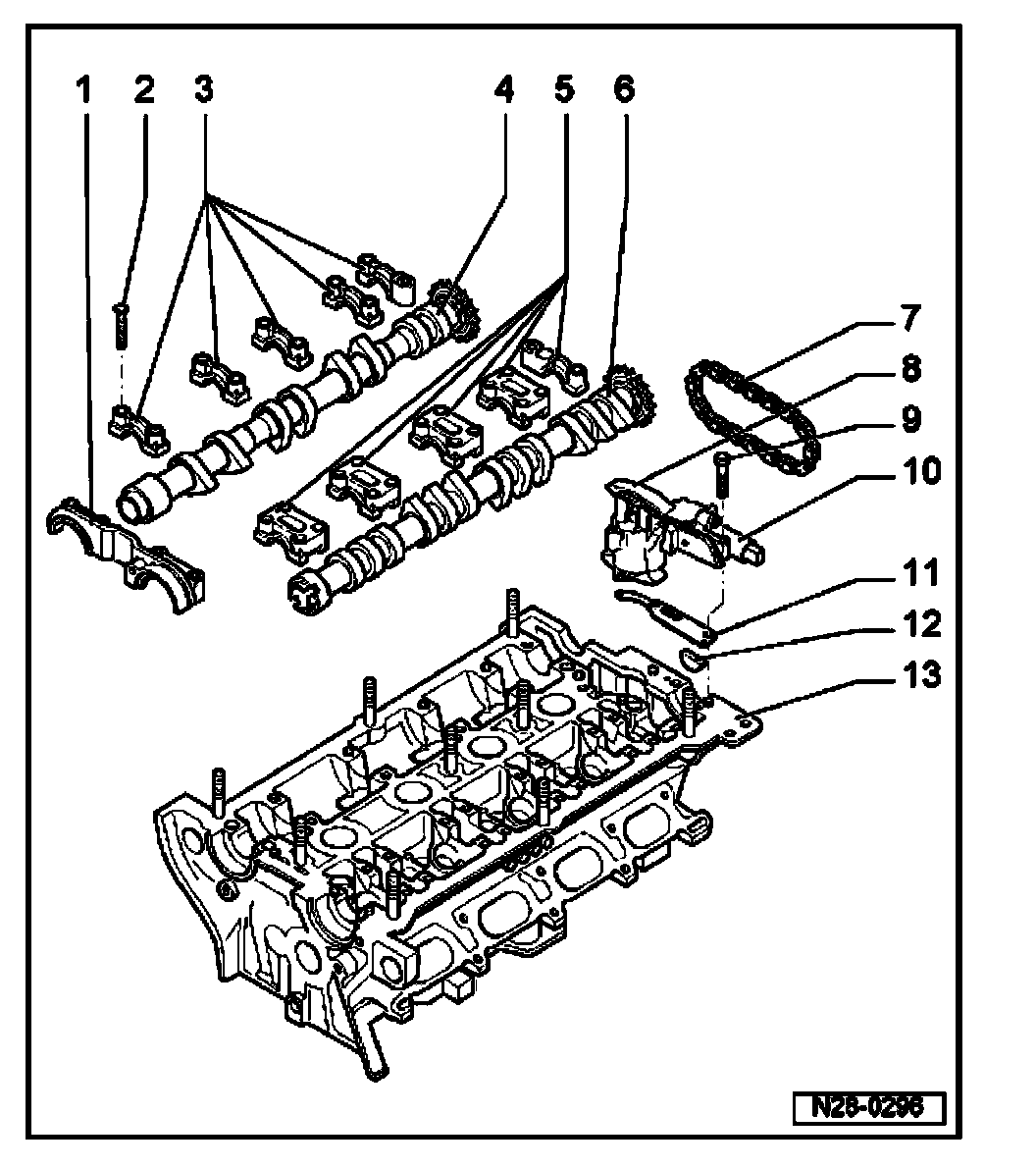

1. Double bearing cap
2. 10 Nm
3. Exhaust camshaft bearing cap
4. Exhaust camshaft
5. Intake camshaft bearing cap
6. Intake camshaft
7. Drive chain
- Mark direction of travel (installation position) before removing
8. Camshaft adjuster
- Check valves for camshaft adjustment
9. 10 Nm
10. Valve -1- for camshaft adjustment -N205-*
- Replace only together with camshaft adjuster item 8
11. Seal
- Rubber/metal seal
- replace
12. Seal
- replace
13. Cylinder head
