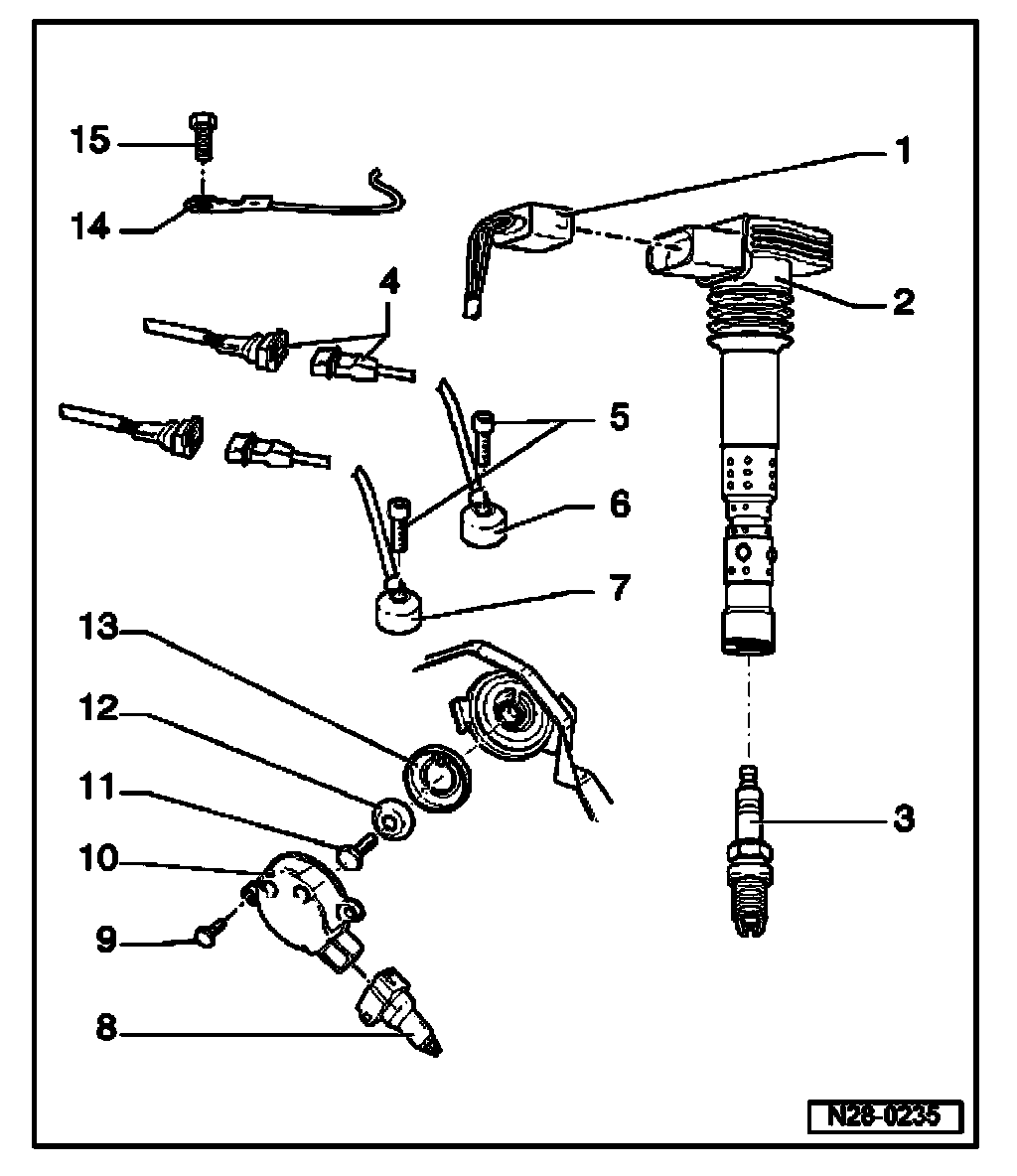

Parts of Ignition - Assembly Overview

Parts Of Ignition - Assembly Overview







1. Connector
- Black, 4-pin
2. Ignition Coil with Power Output Stage N70, N127, N291, N292
3. Spark plug, 30 Nm
- Remove and install with 3122B
- Type and spark plug gap
4. 3-pin harness connector
- Contacts gold plated
- For Knock Sensor (KS) 1 G61
- Engine code AWT: green
- Engine codes AUG, AWM: brown
- For Knock Sensor (KS) 2 G66
- Engine code AWT: blue
- Engine codes AUG, AWM: black
5. 20 Nm
- Tightening torque affects function of Detonation (knock) Sensor (KS)
6. Knock Sensor (KS) 1 G61
- Terminals of sensor and connector are gold-plated
7. Knock Sensor (KS) 2 G66
- Terminals of sensor and connector are gold-plated
8. Connector
- Black, 3-pin
9 10 Nm
10. Camshaft Position (CMP) Sensor G40
11. 25 Nm
12. Washer
- Conical
13. Hood
- For Intake Camshaft Position (CMP) Sensor G40
- Observe installed location
14. Ground wire
- Do not loosen or tighten unless ignition is switched off
15. 10 Nm
- Do not loosen or tighten unless ignition is switched off
