Installing Automatic Transmission Control Module (TCM) -J217-

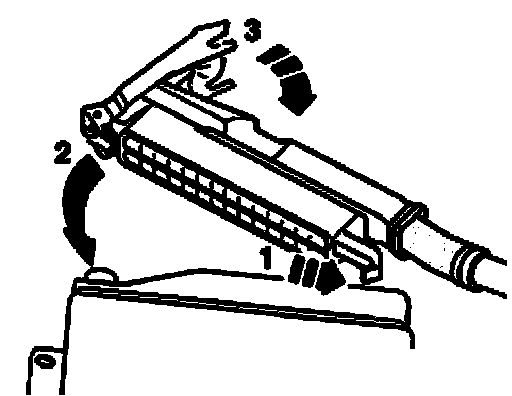

Fig. 3 Installing automatic transmission control module (TCM) -J217-, 01V, 5 SPD. A/T (FWD)





- Place multi-pin connector on transmission control module connector housing -1-, swing in -2- and lock -3-.

If the engine or transmission control module is replaced, the system must be reset.
- Connect VAS5051 tester and advance program until "Function/component selection" is displayed.
- Then press "Powertrain (Repair Group 01; 10 to 26; 28 to 39)".
- Then "5-speed Automatic Transmission 01V.
- Press "01 - On Board Diagnostic".
- Press "Electrical Components".
- Press "Transmission Control Module (TCM) -J2172-".
- Press "Code control module".
