Removing Automatic Transmission Control Module -J217-

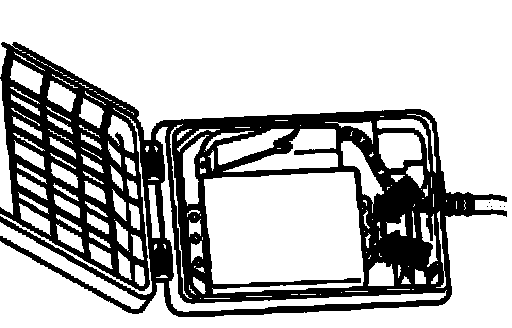

Fig. 2 Removing automatic transmission control module -J217-, 01V, 5 SPD. A/T (FWD)





- Remove trim at bottom of A pillar and remove right-hand door entry trim strip.
- Loosen carpet and fold up.
- Unclip control module from box -arrows-
- Switch off ignition and then wait 30 seconds before removing multi-pin connector.
- Release multi-pin connector, then pull connector off control module.
