Subframe Installation With Alignment

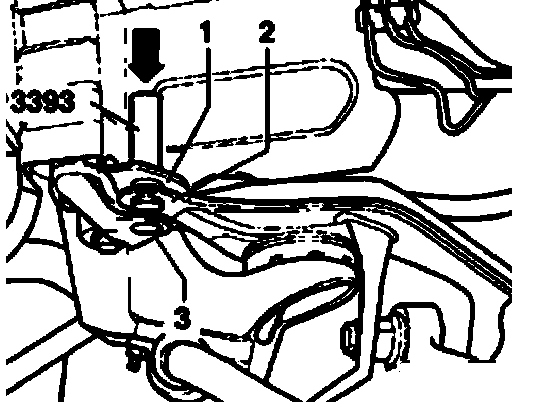

Subframe installation with alignment If holes -1- and -2- did not align before loosening
subframe, the wheel alignment must be checked.
-
Install
subframe using bolts originally removed. These must be replaced following wheel alignment.
-
When doing this, tighten original bolts only to prescribed torques:
WARNING!: The vehicle must not be driven at this point.
