Front Axle Camber, Adjusting
Front axle camber, adjusting If a value lies outside the tolerances, check trim height and balance if necessary.
By moving the subframe is it possible to change the camber slightly.
-

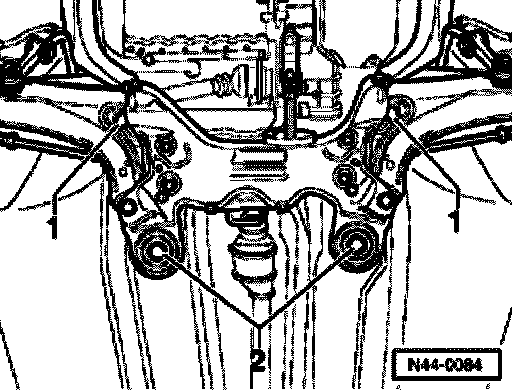

Loosen bolts - 1 - and - 2 -.
-
Move subframe to equalize camber on both sides.
Check caster; caster can also change when moving subframe.
Check caster angle afterward.
-

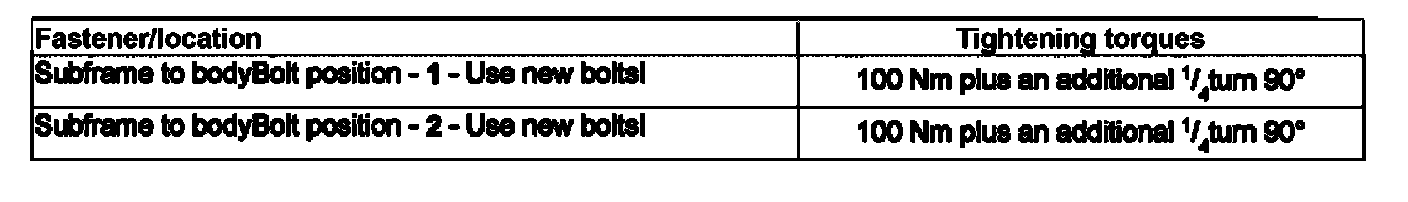

Secure subframe with new bolts.
