Front Axle Toe, Adjusting

Front axle toe, adjusting
If vehicle is out of specification, check trim height and balance if necessary.

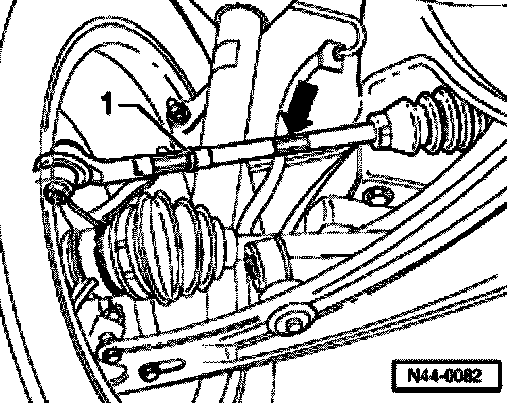

- Loosen lock nut - 1 -.





- Adjust toe by turning tie rod to left and/or right. To do this position wrench at nut - arrow - on tie rod.

Note:
^ After turning tie rods, make sure that the boots are not twisted.

Twisted boots wear out quickly.
- Tighten lock nut - 1 - 50 Nm and check toe again to ensure adjustment has not changed.

After tightening lock nut - 1 -.

It is possible that the value will change slightly.

If toe adjustment has not moved more than 2° from specification, adjustment is OK.
