Vehicle Data Sticker



Vehicle data sticker

Explanation of the PR No. on the vehicle data sticker
Various suspension components are installed depending on engine and equipment level. They are indicated by the PR numbers (they are also known as factory codes).

The suspension components installed on the front axle in the vehicle is documented on the vehicle data sticker with the relevant PR. number.

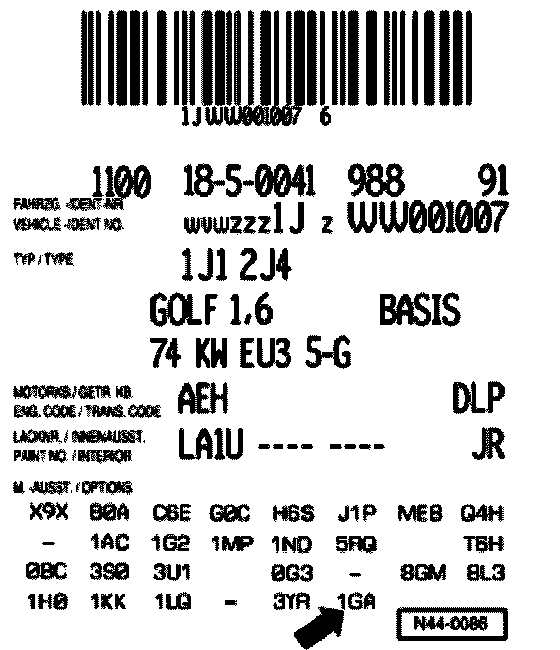

Example of a vehicle data sticker

In this example the vehicle is equipped with the standard suspension 1 GA - arrow -

The PR No. can also be e.g. G08, G29, G46 G76 etc.

The vehicle data sticker is located in spare wheel well and in Maintenance booklet.

Vehicles up to 03.00 the data sticker is located in spare wheel well and in Maintenance booklet.

Vehicles from 04.00 (Jetta vehicle only) the data sticker is located next to spare tire wheel well, near left rear wheel house and in Maintenance booklet.

The PR numbers determine the specified value allocation for the vehicle.
