01M, 4 SPD. A/T

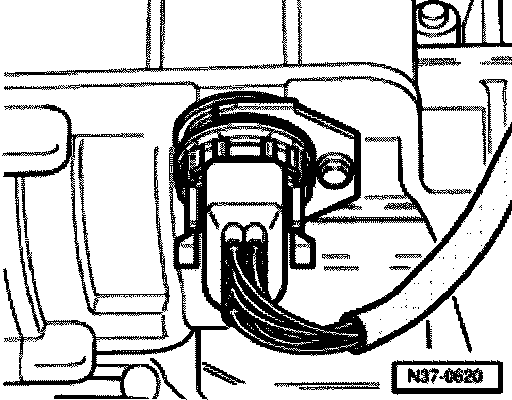

Fig. 6 Multi-Function Transmission Range (TR) Switch -F125-, 01M, 4 Spd. A/T





Location: on rear of transmission

Removing and installing -F125-
- Switch ignition off
- Disconnect connector from multi-function TR switch.
- Remove bolt and retainer.
- Remove multi-function TR switch.
- Replace seal.
Installation is performed in the reverse order.
- Tighten bolt to 10 Nm (7 ft. lbs.).
