01M, 4 SPD. A/T

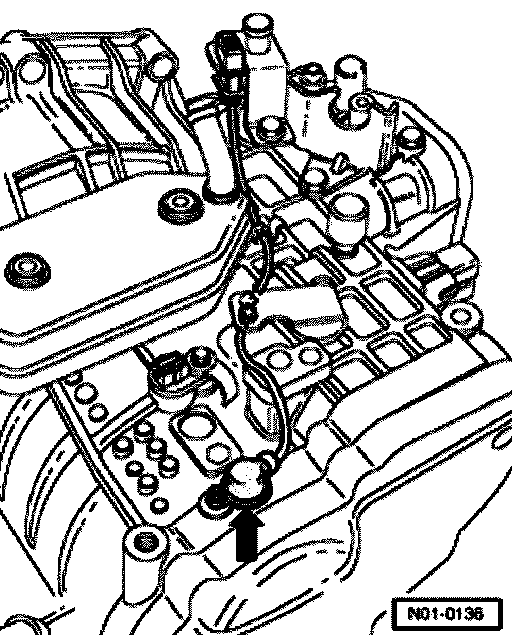

Fig. 15 Vehicle Speed Sensor (VSS) -G68-, 01M, 4 Spd. A/T





Location: on top of transmission
When the transmission is installed the sensor is covered by the left transmission mount.

Removing and installing VSS -G68-

- Obtain radio code on vehicles with coded radio.
- Switch ignition off and disconnect battery ground strap.
- Remove battery.
- Remove air cleaner.

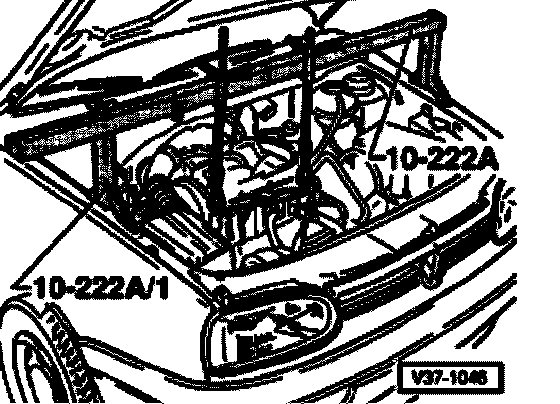

- Install support bar 10-222 A with legs 10-222 A/1 (adapter 10-222 A/3 for 6-cyl. engine) and support engine/transmission in position.
- Remove bracket for power steering pressure hose.

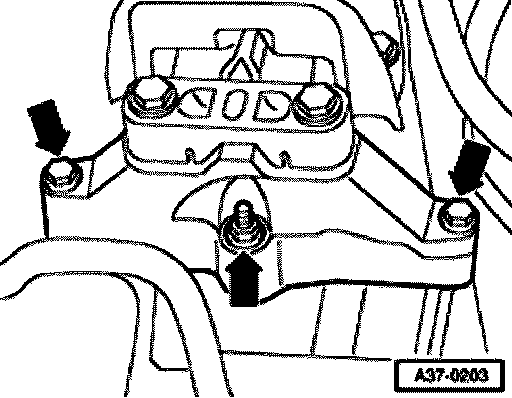

- When transmission has been securely supported, remove bolts for transmission carrier (arrows).

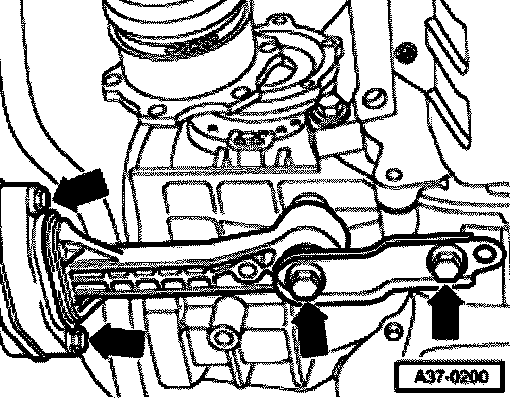

- Remove pendulum support (arrows).

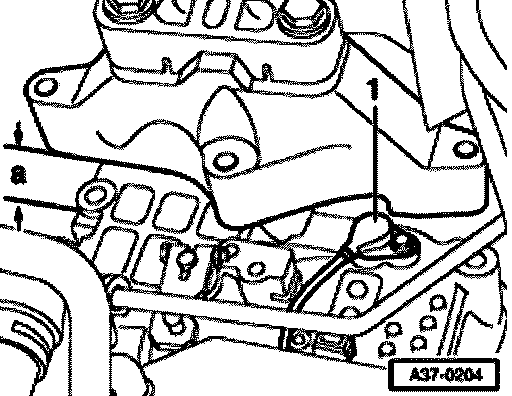

- Lower transmission approximately 60 mm (2.4 in.) -a-.
- Disconnect black connector from sensor.
- Remove bolt and take sensor -1- out.
- Replace seal.
Installation is performed in the reverse order of removal.
- Tighten bolt to 10 Nm (7 ft. lbs.).
