End Output (Scan Tool Function 6)



Ending Output, 01M, 4 Spd. A/T
- Press buttons -0- and -6- to select End output function 06.

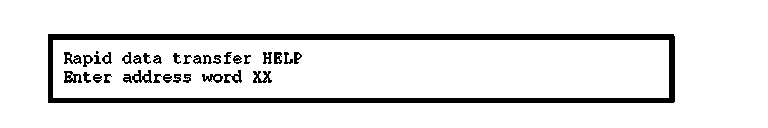

Indicated on display
- Confirm entry with -Q- button.

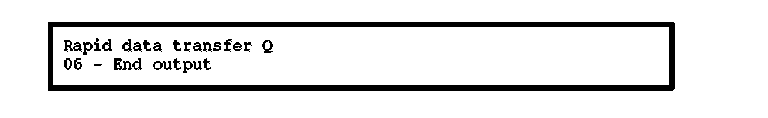

Indicated on display
- Switch ignition off.
- Disconnect connector for VAG 1551 Scan Tool.
