Wheel Trim, Removing and Installing

Wheel trim, removing and installing

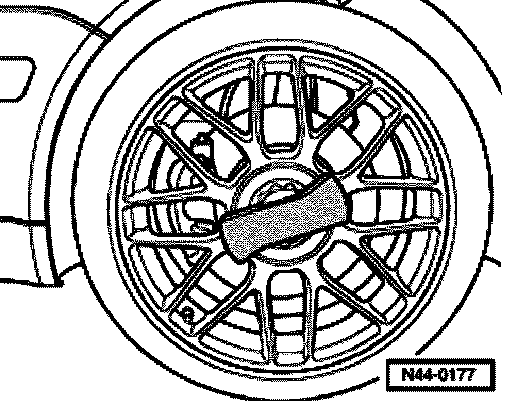

The alloy wheel of the Golf GTI 132 kW has a bolted wheel trim. You can screw and unscrew the wheel with the assembly tool in the vehicle.

Note:
^ Do not use other assembly tools! Otherwise the wheel trim or alloy wheel can be damaged.

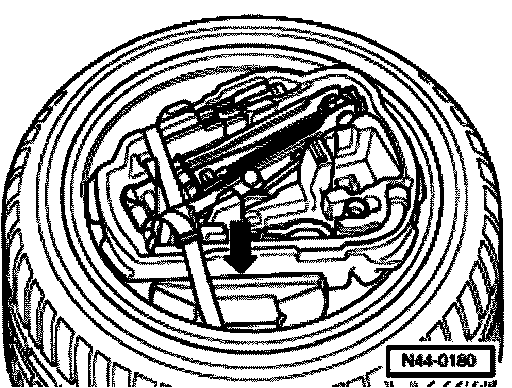

The assembly tool - arrow - for the wheel trim can be found in the tool kit.

It is available as a replacement part with part No. 4B0 012 219 B.
