Transmission Control Module (TCM) -J217- 68-Pin Connector Assignment (Socket Numbers on VAG 1598/18)



Transmission Control Module (TCM) -J217- 68-pin connector assignment (socket numbers on VAG 1598/18), 01M, 4 Spd. A/T

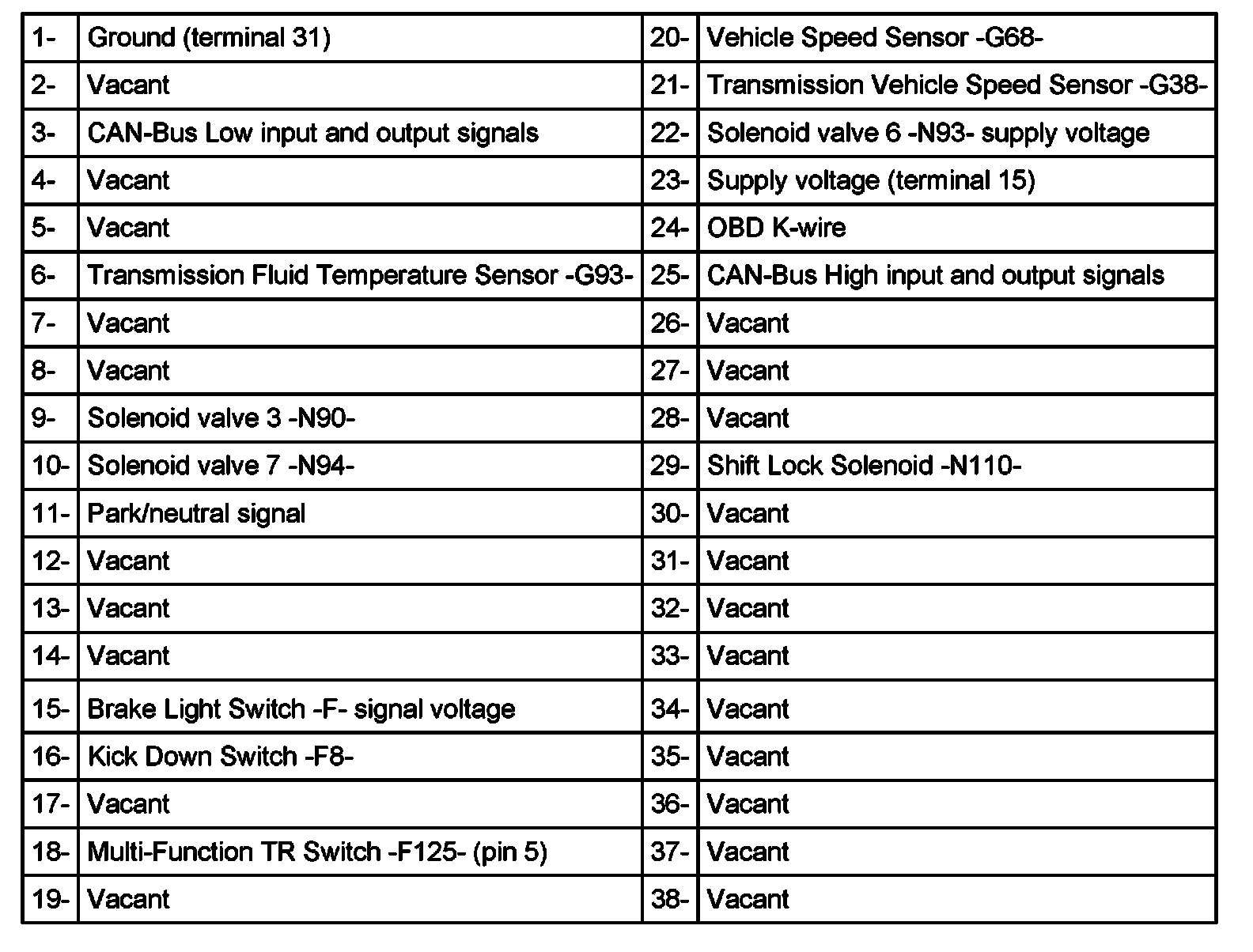

socket numbers on VAG 1598/18:

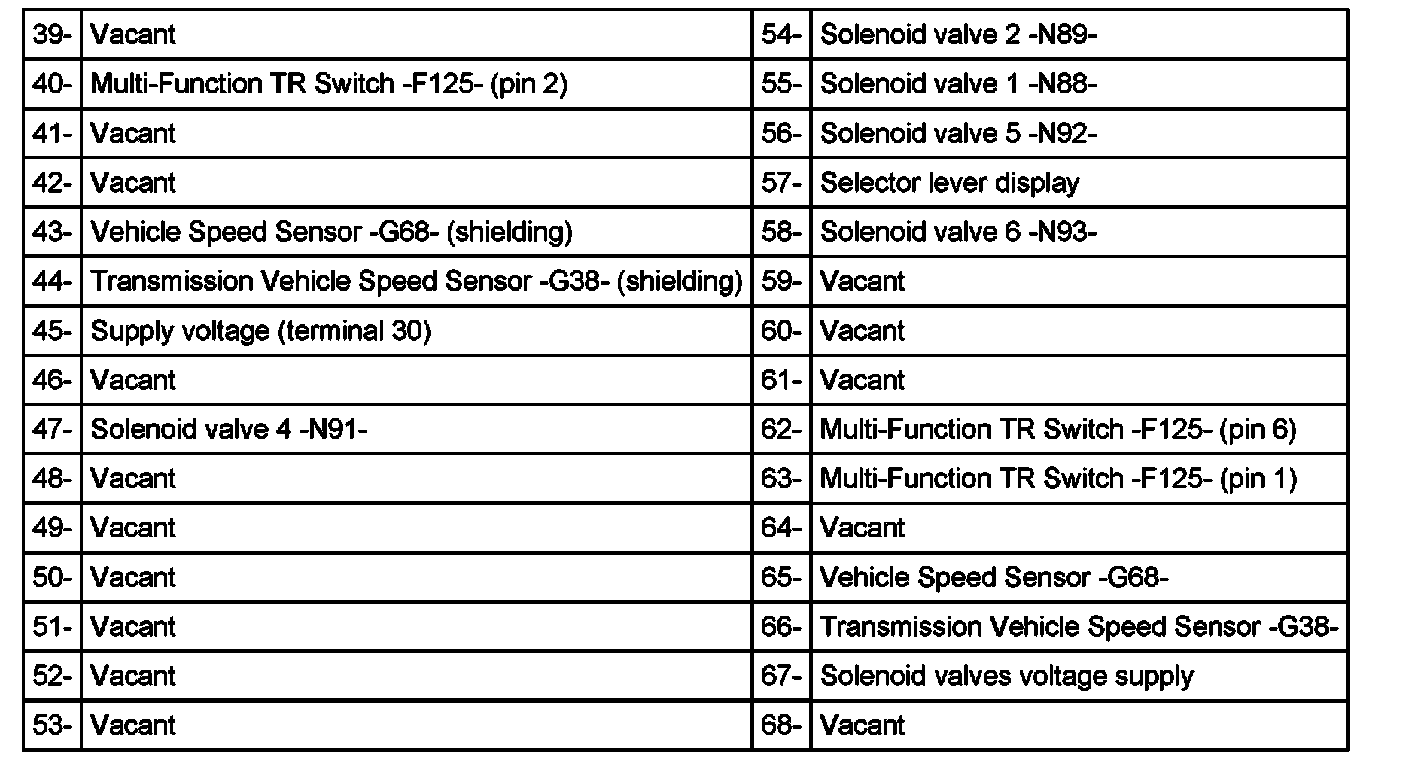

socket numbers on VAG 1598/18:
