Front ABS Components Assembly Overview

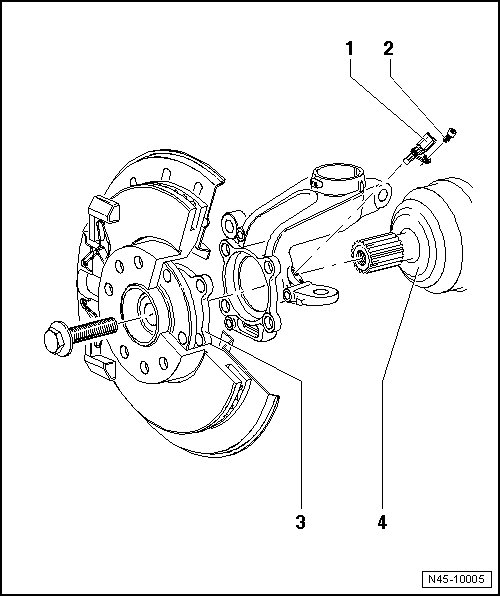

Front ABS Components Assembly Overview 1 ABS Wheel Speed Sensor •
Before inserting sensor, clean inner surface of bore hole and coat with hot bolt paste (G 052 112 A3).
•
Removal and installation, refer to => [ Front
Wheel Speed Sensor ]
Front Wheel Speed Sensor.
2 Bolt, 8 Nm 3 Wheel Bearing and Wheel Hub Unit •
The ABS sensor ring is installed in the wheel bearing.
4 Drive Axle
