Cylinder Head Specifications

Checking the Cylinder Head for Distortion

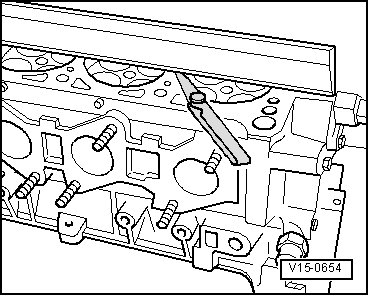

Check the cylinder head at multiple points for distortion, using a straight edge and feeler gauges.

Maximum permissible distortion: 0.05 mm

If this value is exceeded, the cylinder head must be replaced. It is not permissible to rework the sealing surface.

Intake manifold Specifications

Exhaust manifold Specifications

Camshaft Gear/Sprocket Torque Specifications
