Engine Accessory Bracket

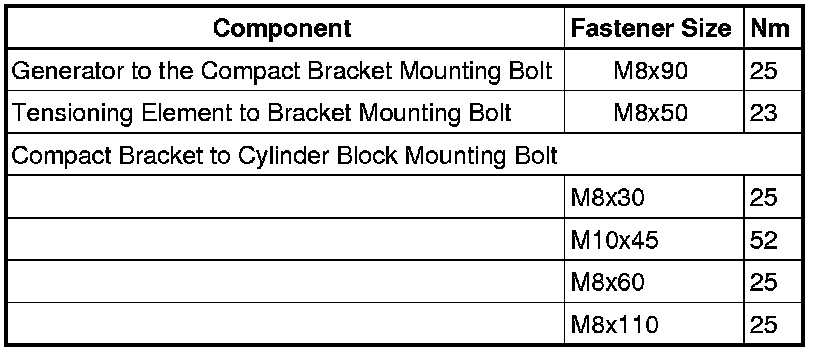

Generator Compact Bracket Tightening Specifications, 2.5L

• Pay attention to alignment bushing between bracket and cylinder block.

• There is no tightening sequence to be followed for the bracket.
