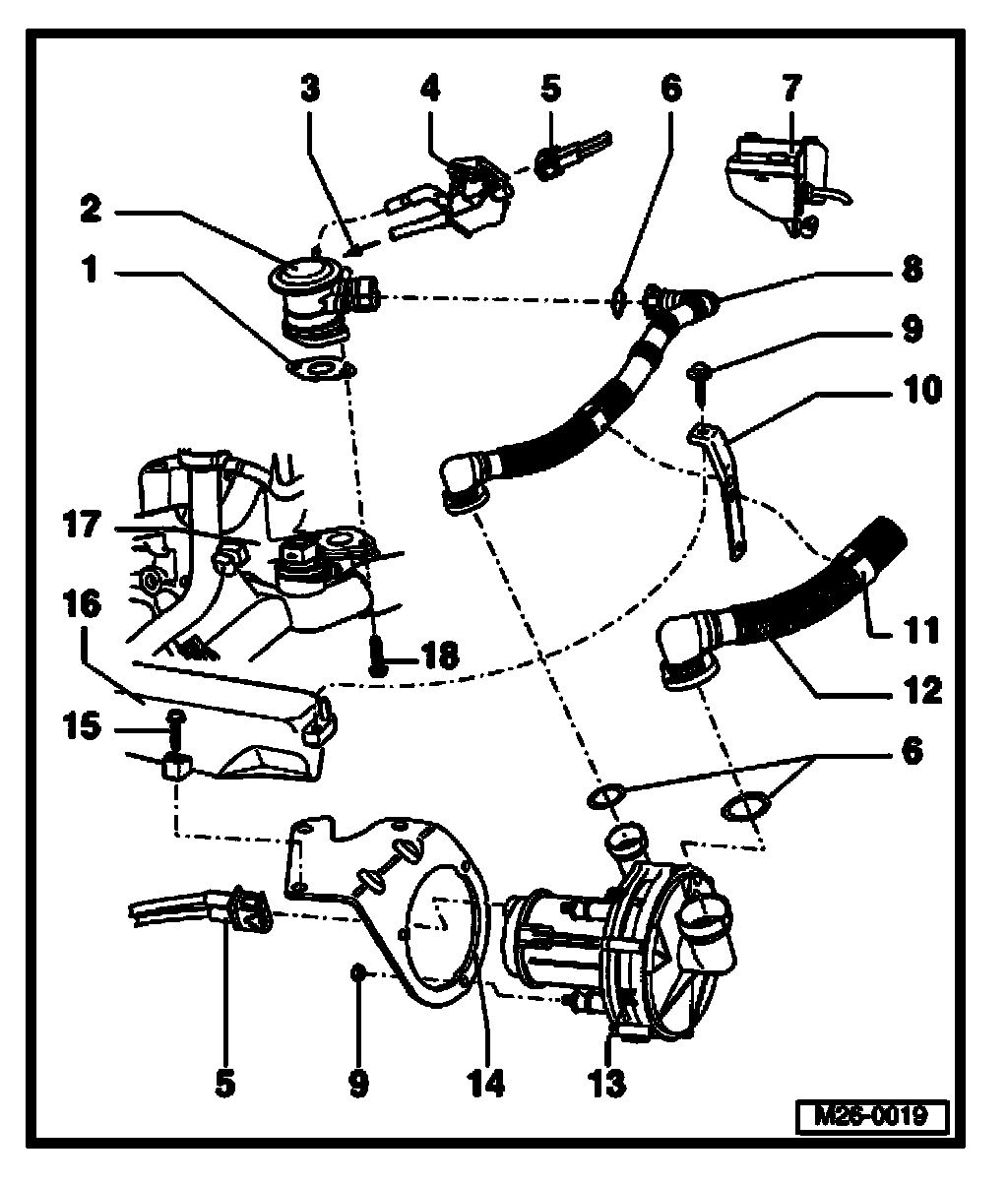

Secondary Air System Components, Assembly Overview



Secondary Air System Components, Assembly Overview







1. Metal gasket
2. Combi-valve
3. Connecting hose
- To distributor piece on vacuum reservoir on cylinder head cover
4. Secondary Air Injection (AIR) solenoid valve -N112-
- Mounted on cylinder head cover.
5. Connector
- 2-pin
6. O-ring
- Replace if damaged
7. Secondary Air Injection (AIR) pump relay -J299-
- Location
8. Pressure hose
- Check for secure seating
- To unlock, press together on corrugated area of ring
9. 10 Nm
10. Bracket
11. Retaining clip
12. Intake hose
- To air cleaner upper section
- Check for secure seating
- To unlock, press together on corrugated area of ring
13. Secondary Air Injection (AIR) pump motor -V101-
14. Bracket
- For secondary air pump motor
- Secured to intake manifold
15. 25 Nm
16. Intake manifold
17. Cylinder head
18. 10 Nm







Location of Secondary Air Injection (AIR) pump relay -J299-
The Secondary Air Injection (AIR) pump relay -J299- -arrow- is located in the protective housing for relays and fuses in the engine compartment (inserted into the cable guide next to the master cylinder).
