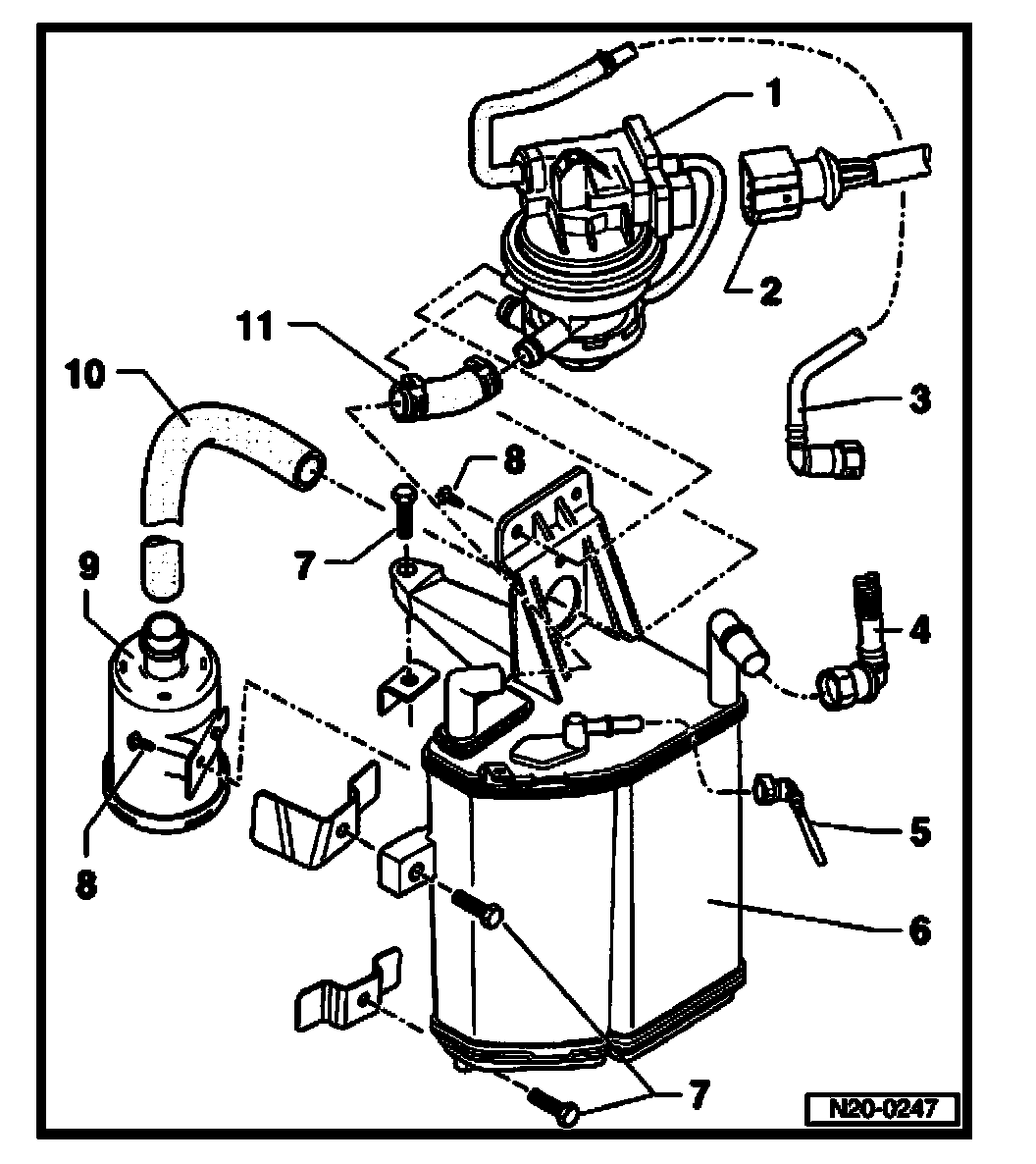

EVAP System Components, Assembly Overview



EVAP System Components, Assembly Overview

Engine Codes APH, AWP, AWV, BKF, BNU







1. Leak Detection Pump (LDP) -V144-
- Under wheelhousing liner in right rear wheelhousing.
- At activated EVAP I canister
- Pump will be activated by engine control module (pulsed)
2. Connector
- 3-pin
3. Vacuum line
- To unlock press locking ring inward
4. Breather line
- Press together at front to release
5. To Evaporative Emissions (EVAP) canister purge regulator valve -N80-
6. Evaporative Emissions (EVAP) canister
- Under wheelhousing liner in right rear wheelhousing.
7. 10 Nm
8. 3 Nm
9. Air cleaner for leak detection pump
10. Connecting hose
- Suction side
11. Connecting hose
- Pressure side
