Engine Mount



Assembly mountings, tightening torques

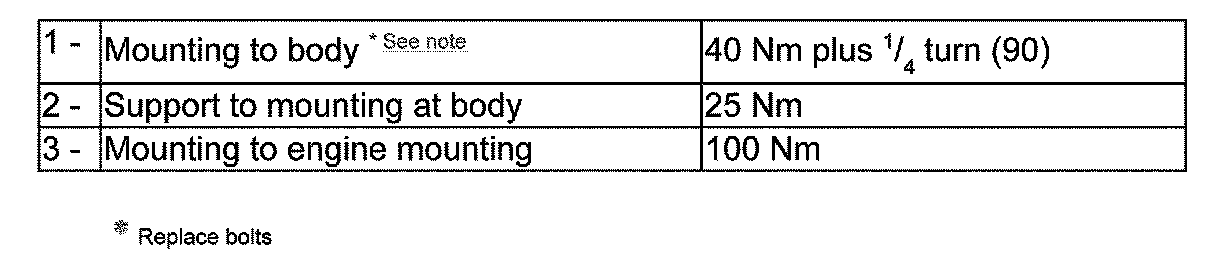

Engine assembly mounting

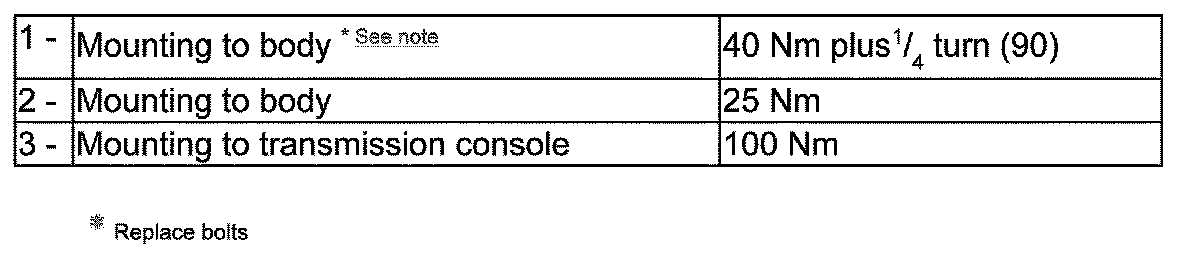

Transmission assembly mounting

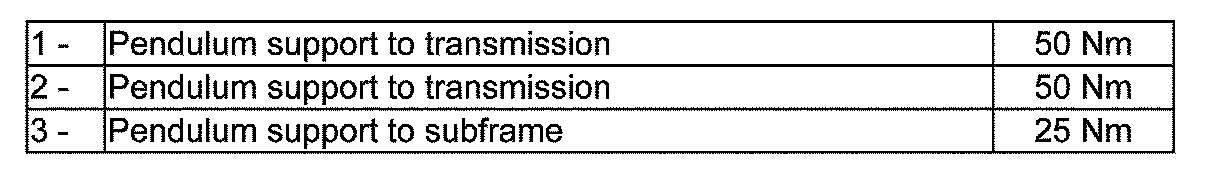

Pendulum support





CAUTION!
The air conditioning system refrigerant circuit must not be opened.
