Electronic Power Control (EPC) System, Assembly Overview

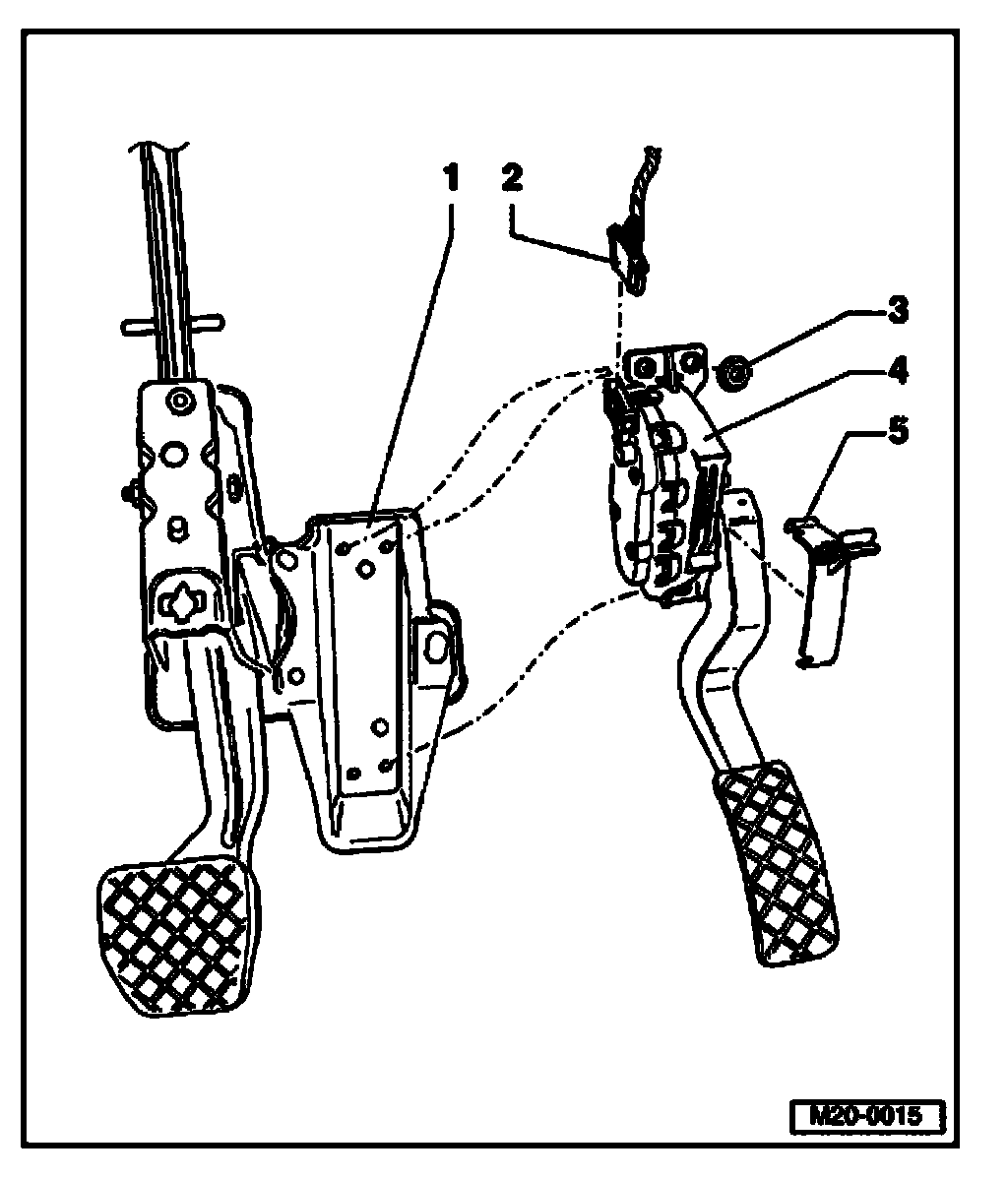

Electronic Power Control (EPC) System, Assembly Overview







1. Mounting
2. Connector
- Black, 6-pin.
3. 10 Nm
4. Throttle Position (TP) sensor -G79- and Sender 2 for accelerator pedal position -G185-
- Cannot be adjusted
- Passes position of pedal on to engine control module
- Remove footwell cover to remove
5. Bracket
- For footwell cover
- Clipped securely onto accelerator pedal position sender.
