A/C Compressor and Bracket Assembly

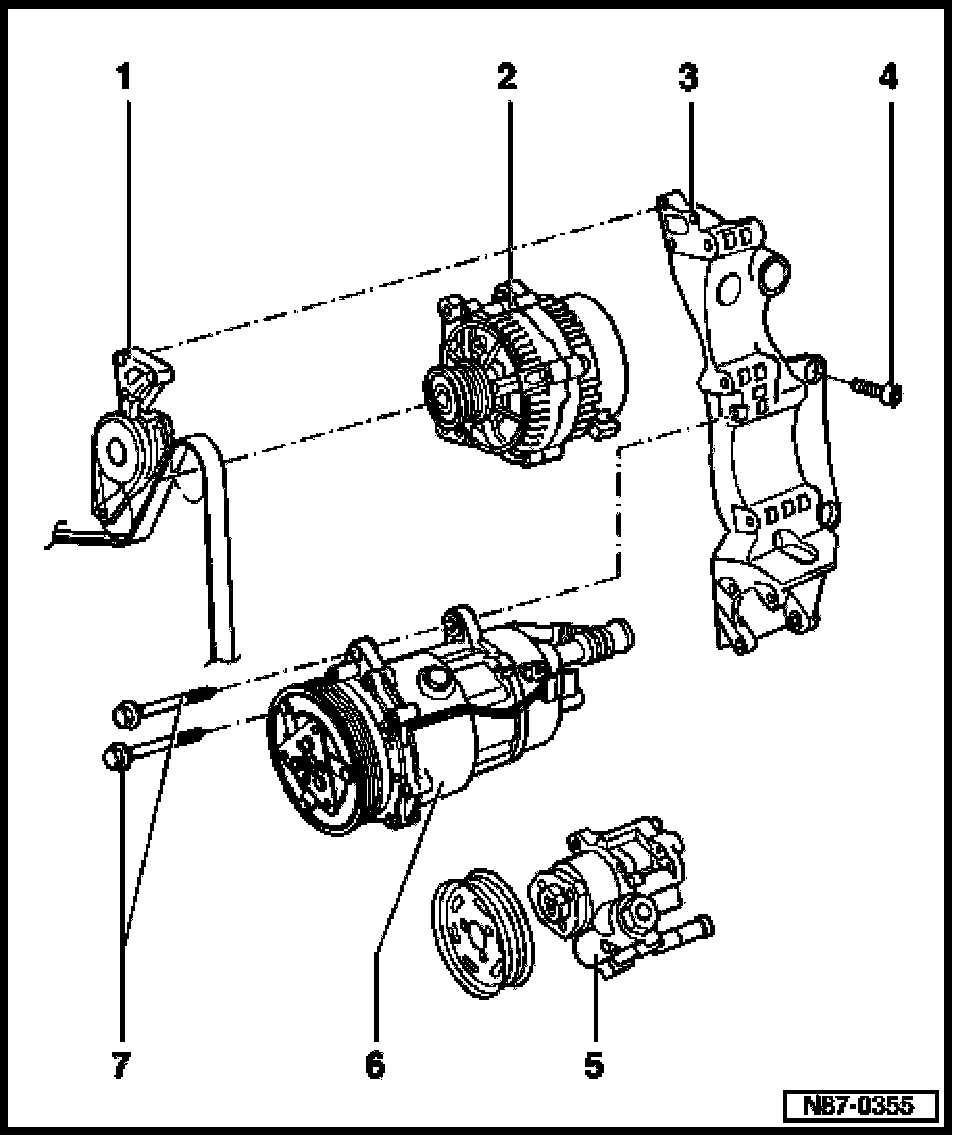

A/C Compressor and Bracket - 2.0L 4-Cylinder Gasoline Engine, Assembly







Special tools, testers, measuring instruments and auxiliary items required
- Torque wrench (5 - 50 Nm)

NOTE:
- The compressor bracket and related components can be removed and installed without having to open the refrigerant circuit.
- All ancillary components must be removed prior to removal of compressor mounting bracket.

1. Ribbed belt tensioner
2. Generator (GEN)
3. Bracket
Mounting for:
- Generator
- Compressor
- Power steering pump
- Removing:
- Remove ribbed belt (also known as "poly-V.belt) Service and Repair
- Remove Generator (GEN) Service and Repair
- Remove power steering pump Service and Repair
- Remove bolts -7-.
- Remove compressor from bracket, swing away and secure in engine compartment with wire.
- Remove bolts -4- (Qty. 4).
- Remove compressor bracket from engine.
4. Hex socket bolt
- Qty. 4
- M10X55
- 50 Nm (37 ft. lb)
5. Power steering pump
6. Compressor
- Sanden SD7-V16
- With A/C clutch -N25-
- A/C clutch -N25-, servicing
7. Hex head bolt
- M10X112
- 45 Nm (33 ft.lb)
