Fuse Block: Service and Repair
Fuse Holder, Removing and InstallingRemoving -
Disconnect battery.
-
Remove driver's side instrument panel.
-
Carefully pry on fuse panel cover from instrument panel.
-

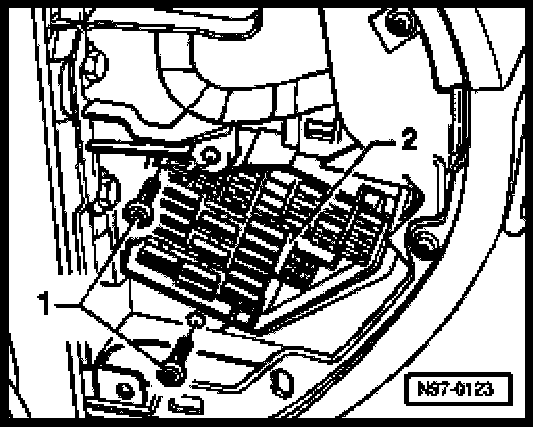

Remove both securing screws -1- and remove fuse panel -2- inward.
Installing -
Install in reverse order of removal.
