Windshield Washer System, Assembly Overview

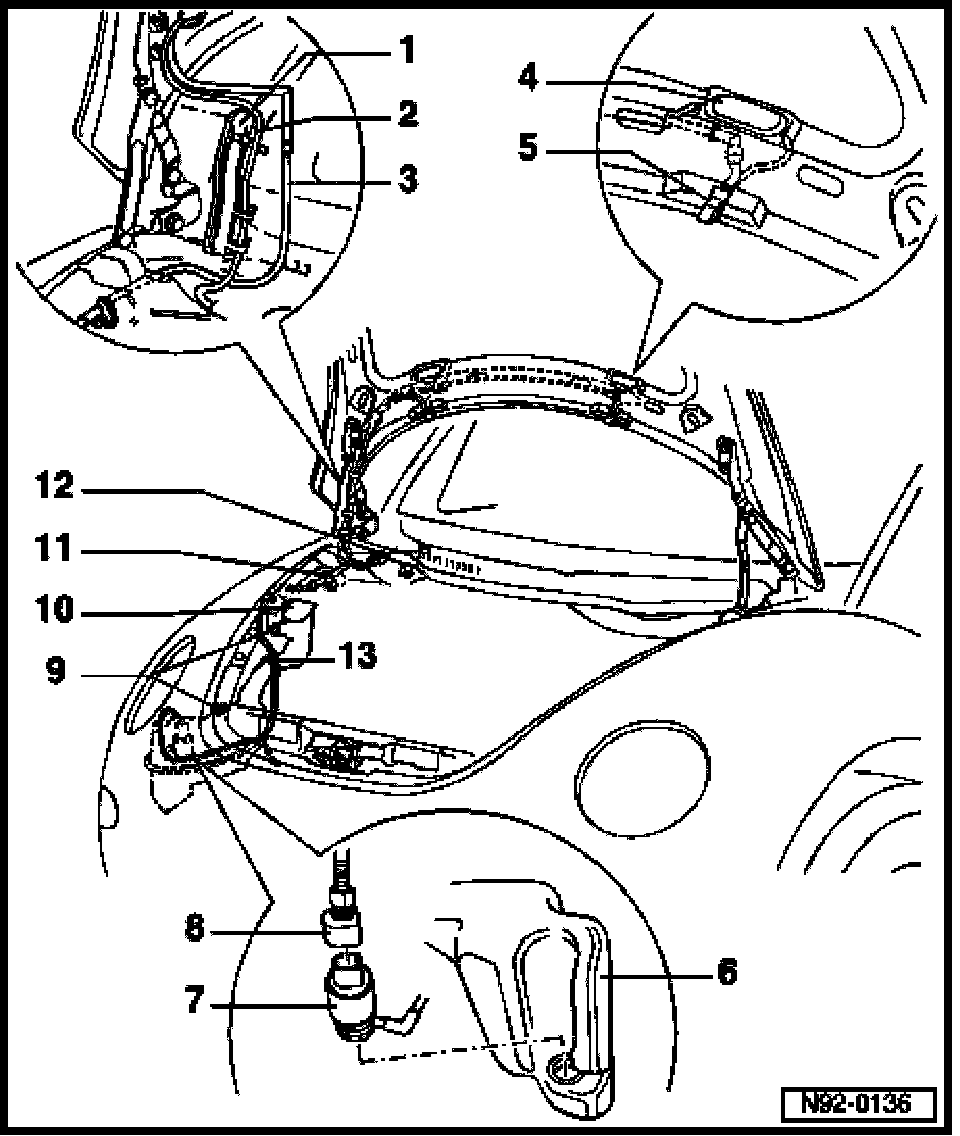

Windshield Washer System, Assembly







1. Securing clip
2. Wiring harness for heated washer jets
3. Hose
4. Cover cap
- With connectors for heated washer nozzles
5. Jets
6. Windshield washer system reservoir
- Removing Remove right front inner fender lining
7. Windshield washer system pump
- Pull pump upward off rubber grommet
8. Harness connector
9. Securing bolts
- 5 Nm (44 in.lb)
10. Container cap
11. Transfer piece
12. Harness connector for heated washer nozzles
13. Hose clip
