Procedures
Lock carrier, moving to service position -
Removing front part, refer to
Front end, assembly overview Front End, Assembly Overview -
Unhook Bowden cable at lock.
-

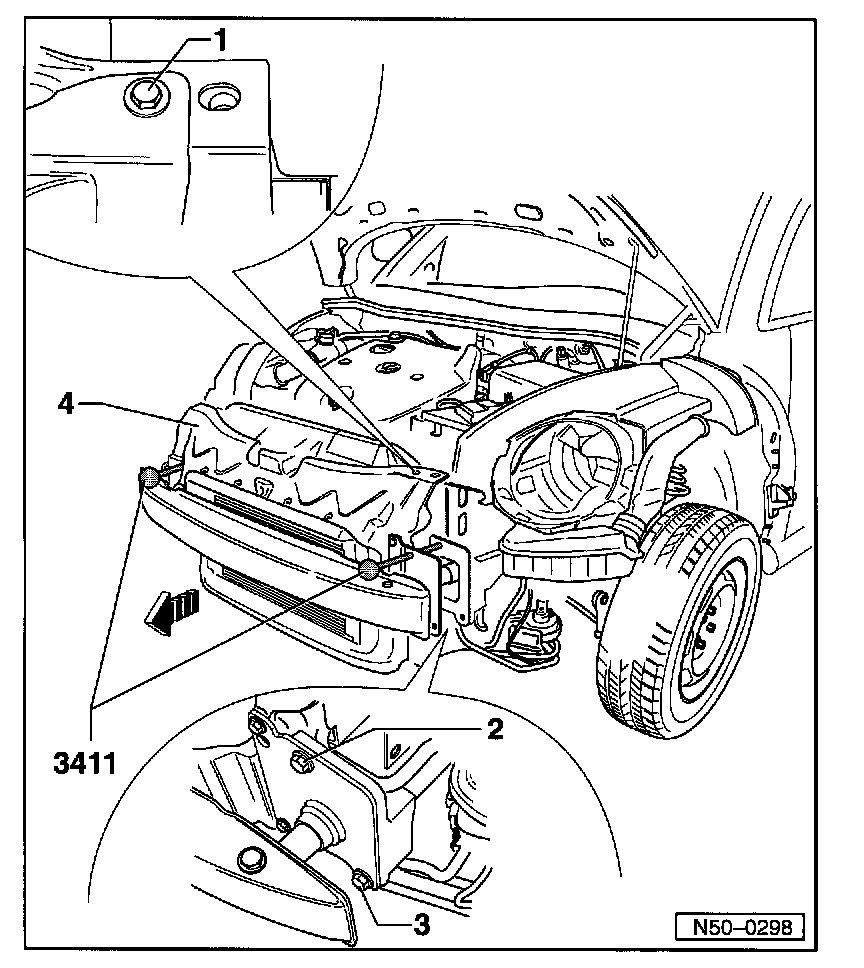

Remove bolt -2- from each longitudinal member and install guide pins 3411 into this position on the left and right-hand longitudinal members.
-
Remove bolts -1- and -3- on left and right-hand sides and pull lock carrier in area of guide rails 3411 forward.
